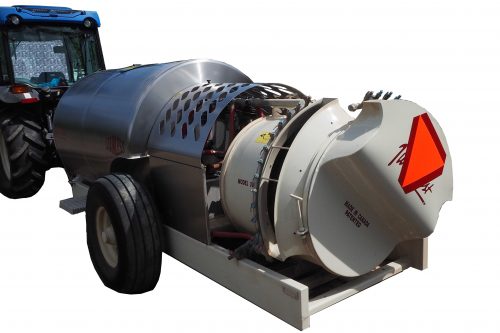

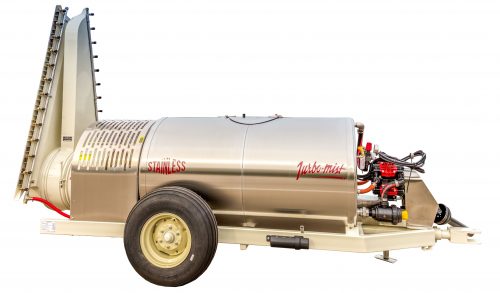

Slimline Turbo-Mist

Turbo-Mist Sprayers are engineered to increase yield, eliminate drift, reduce operating costs and decrease ecological footprint. The patented airblast technology maximizes sprayer airflow while restricting chemical recycling and waste, creating precision coverage while protecting your crop. Turbo-Mist Sprayers: Portable, durable, and customizable

Tank Features

  • 500 or 1,000 Gallon Stainless Steel Tank
  • 400 PSI, 4″ Gauge, Stainless Mounted on Front
  • Sump Drain on Tank
  • Paddle Tank Agitation
  • Vented Lid with Stainless Steel Strainer Basket

Plumbing Features

  • Diaphragm Pump, Udor Zeta 170, Belt Drive
  • 2″ ARAG Suction Strainer with Gate Valve
  • 3″ Quick Fill – 3″ Inlet, Requires Coupler
  • Tank Handle at Step
  • Control, Electric 12 Volt, On/Off Valves & Pressure Regulator
  • Speed Gearbox for Turbine Fan – High/Low (2 Speed)
  • Pressure Filters, Flushable, Brass – Mounted between Pump & Boom

Air Features

  • 30″ Turbine
  • Outlet, 30″ – To Direct Wind – 13 Nozzles Per Side
  • Boom Total 26 Nozzles with Anti-Drip for Orchard Head
  • Remote Grease Point for Turbine Bearings

Trailer Features

  • Main Frame 2″ X 8″ Steel Tubing, Powder Coated

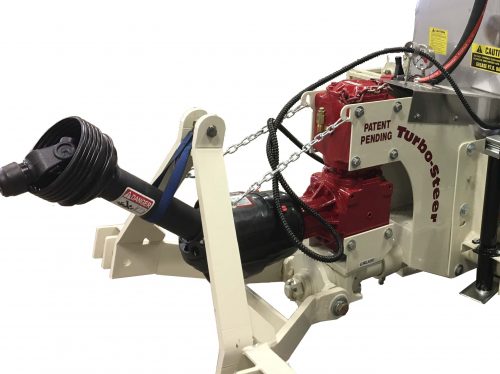

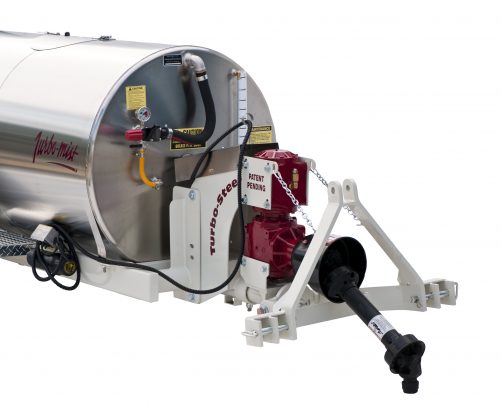

  • Turbo Steer Hitch
  • Step, Mounted by Bolting On, Aluminum
  • Wheels on 500 gal – 8 Bolt 400/55 X 22.5 Tires
  • Wheels on 1,000 gal – 8 Bolt 21.4 X 16.1 X AX2.75R8 Tires

Options Available

  • 4 Eye System w/Control Box and ARAG Valves for Left & Right

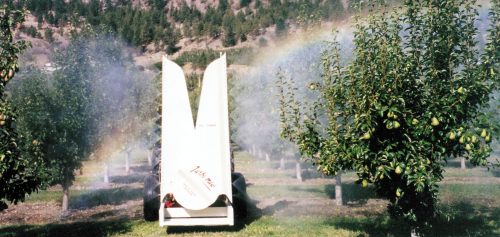

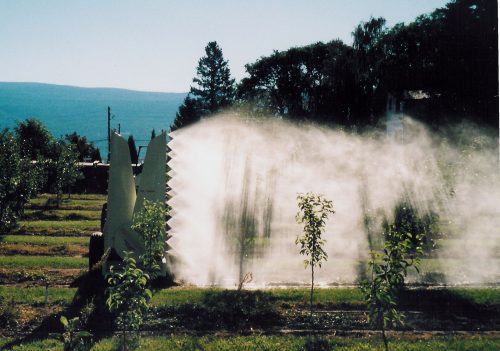

  • Low Drift Tower, replaces Orchard Head & Includes Upgrade to Split System
  • Various Nozzles
  • Steps, Heavy Duty
  • Quick Fill Arrangement
  • Rate Control

See brochures for various crops

Peach Slimline Turbo-Mist Brochure

Citrus Slimline Turbo-Mist Brochure 2

Vineyard Slimline Turbo-Mist Brochure

Orchard Slimline Turbo-Mist Brochure

Nut Grower Slimline Turbo-Mist Brochure
