Cone Bottom Tanks

Norwesco offers a full range of cone bottom tanks designed for a variety of applications. The conical bottoms enable quick and complete drainage. As with all Norwesco tanks, the cone bottom tanks are molded of rugged, high density polyethylene and are both impact and chemical resistant. Cone bottom tanks can be used as brewing tanks or fermenter tanks.

Fitting Installation Guide for Cone Bottom Tank

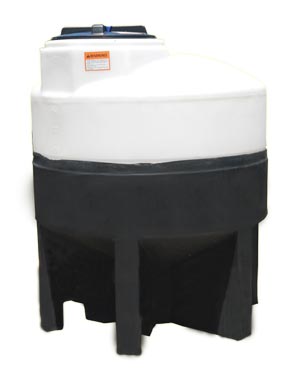

Cone Bottom Tank

Gallon CapacityDiameterOverall HeightSlopeFill OpeningOutlet/Drain SpecPremium Weight Part No. WhiteAvailHeavy Weight Part No. BlueAvail
*125 w/stand48″41″15°8″-(63480)2″-(60405) 2″ street elbow (62199)43161MNNA
16036″52″45°16″-(63485)2″-(60405)43845IANA
*175 w/stand43″49″/9″†30°16″-(63485)2″-(60405) 2″ street elbow (62199)60113 TANK
60113 UNIT
60113 STD
MN, OH, GA, OK, UT, IA, CANA
30048″56″45°16″-(63485)2″-(60405)43848 IANA
*300 w/stand49″61″/9″†30°16″-(63485)2″-(63683)62343 TANK
62343 UNIT
62343 STD
MN, OH, GA, OK, UT, IA, CANA
*310 w/stand43″72″/9″†30°8″-(63480)2″-(60405) 2″ street elbow (62199)62441 TANK
62441 UNIT
62441 STD
B,C,D,E,F,I,LNA
50048″ 85″45°16″-(63485)2″-(60405)43850INA
*500 w/stand49″87″/9″†30°16″-(63485)2″-(63683)40289 TANK
40289 UNIT
40289 STD
B,C,D,E,F,I,LNA
55072″47″20°16″-(63485)2″-(63683)44647F,LNA
*550 w/stand73″57″/11″†20°16″-(63485)2″-(63683)44649 TANK
44649 UNIT
44649 STD
F,LNA
75072″56″20°16″-(63485)2″-(63683)40811B,F,LNA
*750 w/stand73″67″/11″†20°16″-(63485)2″-(63683)40809 TANK
40809 UNIT
40809 STD
B,F,LNA
100072″89″45°16″-(63485)2″-(63683)43852BNA
102091″53″15°16″-(63485)2″-(63683)44341B,E44420B,E
105072″75″20°16″-(63485)2″-(63683)40356B,C,D,F,LNA
*1050 w/stand73″86″/11″†20°16″-(63485)2″-(63683)40359 TANK
40359 UNIT
40359 STD
B,C,D,F,LNA
132091″64″15°16″-(63485)2″-(63683)44339B,E44422B,E
150072″118″45°16″-(63485)2″-(63683)43854BNA
160088″84″30°16″-(63485)2″-(63683)40817C,F,L40819C,F,L
*1600 w/stand89″96″/11″†30°16″-(63485)2″-(63683)40813 TANK
40813 UNIT
40813 STD
C,F,L40815 TANK
40815 UNIT
40815 STD
C,F,L
172091″78″15°16″-(63485)2″-(63683)44337B,E44424B,E
250091″108″15°16″-(63485)3″-(62299)43065I43067I
250096″105″30°16″-(63485)2″-(63683)40066C,D,L40129C,D,L
*2500 w/stand99″116″/10″†30°16″-(63485)2″-(63683)40672 TANK
40672 STD
40672 UNIT
C,D,L40674 TANK
40674 STD
40674 UNIT
C,D,L
300096″123″30°16″-(63485)2″-(63683)40170B40172B
*3000 w/stand99″134″/10″†30°16″-(63485)2″-(63683)40797 TANK
40797 STD
40797 UNIT
B40799 TANK
40799 STD
40799 UNIT
B
300091″120″15°16″-(63485)3″-(62299)45141E,F,I45242E,F,I
4950102″159″15°16″-(63485)3″-(62299)45381X45383X
5500119″148″30°16″-(63485)3″-(62299)40549B,E,J40316B,E,J
6000102″189″10°16″-(63485)3″-(62299)43054L43056L
6000102″195″15°16″-(63485)3″-(62299)40931B,E,J40933B,E,J
7500141″149″30°16″-(63485)3″-(62299)40551B,E,J40409B,E,J
10000142″173″15°22″-(63679)3″-(62299)44459B,T44461B,T
10000141″190″30°16″-(63485)3″-(62299)44103B,T44105B,T
* Polyethylene stand
 †Distance from bottom of cone to ground
Fittings ship uninstalled unless tank is purchased assembled with a poly stand.

Polyethylene Cone Bottom Stands

Maintenance free, lightweight Norwesco polyethylene stands offer unequaled corrosion resistance

Tank Size (Gallon)ABCD
125 – 15°NA30 3/8″12″48″
175 – 30°NA31 1/2″8″43″
300 – 30°NA32″8″49″
310 – 30°NA31 1/2″8″43″
500 – 30°NA32″8″49″
550 – 20°NA34″10″ 73″
750 – 20°NA34″10″73″
1050 – 20°NA34″10″73″
1600 – 30°NA46″10″89″
2500/3000 – 30°NA47″10″96″

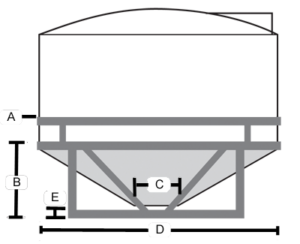

Steel Cone Bottom Stands

Norwesco cone bottom stands are manufactured from structural steel and offer a full dish for uniform support.

Gallon CapacityABCDFPart No.
160 – 45°NA29″7″43″15″ 63932
300 – 45°NA 30″ 8″54″ 11″ 63933
500 – 45°NA30″8″ 54″ 11″ 63933
1000 – 45°NA43″ 9″ 74″ 11″ 63934
1020 – 15°NA25″ 12″ 90″ 10″ 64090
1320 – 15°NA 25″ 12″ 90″ 10″ 64090
1500 – 45°NA43″ 9″ 74″ 11″ 63934
1720 – 15°NA 25″ 12″ 90″ 10″ 64090
2500 – 15°NA 25″ 12″ 90″ 10″ 64090
2500 – 30°NA36″11″96″12″60059
2500 – 30° 2014 Design
Powder coated finish
NA43″18″97″19″64076
3000 – 15°NA 25″ 12″ 90″ 10″ 64090
3000 – 30°NA36″11″96″12″60059
3000 – 30° 2014 Design
Powder coated finish
NA43″18″97″19″64076
4950 – 15°NA25″13″102″13″62473
5500 – 30°NA45″11″119″14″60358
6000 – 10°NA21″12″102″13″63675
6000 – 15°NA25″13″102″13″62473
7500 – 30°NA49″11″140″12″61860
7500 – 30° 2014 Design
Powder coated finish
NA61″25″142″24″64070
10000 – 15°NA30″ 16″ 142.5″ 10″64113
10000 – 30°NA49″11″140″12″61860
10000 – 30° 2014 Design
Powder coated finish
NA61″25″142″24″64070

For specification drawings, visit Norwesco’s Cone Bottom Stand page.

Norweco’s plastic storage tank is constructed with rotationally molded polyethylene resin. It’s seamless construction makes it durable and resistant to cracks, chips, and ruptures. The poly tank was made with FDA approved resin that complies with FDA standards 21 CFR 177.1520 (1) 3.1 and 3.2 for use in food grade storage. It’s made with UV inhibitors that help protect liquid contents from direct sunlight for both indoor and outdoor use. Please verify chemical compatibility before placing your order.

Norwesco backs their polyethylene storage tank with a 3-year manufacturer warranty. Additional fittings and customization options are available.
