Anti Ice – Brine Sprayer

Ideal for any municipality or DOT in need of quality, dependable deicing equipment. The Newton Crouch Skid De-Icer is designed to fit into a dump truck or flatbed body. This allows the vehicle to be used for other purposes besides de-icing. Newton Crouch engineers will work with you to ensure you get the best value for your investment. Call 800-241-1350 to speak with a knowledgeable representative.

Features:

  • Skid Mounted Anti-Ice Sprayer, Heavy Duty
  • Tank – Poly with 3 year warranty, sized to your specifications designed to fit into a full size truck *
  • Agitation, Jet, High Volume, Hypro, with bypass
  • Skid – Channel form with front wheels for easy loading, steel frame
  • Tie Down
  • Paint – Powder Coat, black
  • Pump – Hypro, 13 HP, gas or hydraulic, centrifugal
  • Pressure gauge – liquid, stainless
  • Booms, 2 tier including StreamJet nozzles
  • Raven System – DCS410 Console, 6 ON/Off valves, regulating valve, flow meter
  • TeeJet GPS Speed Sensor

The Raven DCS410 console provides the operator with the flexibility to spray up to 3 lanes simultaneously or one at a time, with a swath of 36 feet maximum. The console is programmed with certain factors and the operator simply has to input the volume of gallons filled/refilled into the tank. Spraying will be maintained at a constant flow even with variations of speed by opening and closing the control valves or activating / deactivating the 2nd tier or booms. The operator can adjust the spray rate with the simple turn of a knob using 10 pre-programmed spraying rates.

*Your vehicle must be rated to support the loaded tank. Multiply 8.34 pounds per gallon (weight of water) times the size of the tank. Example: A 1,000 gal tank weighs 8, 340 lbs.

Learn More



Anti Ice – Brine Nurse Tanks

The Newton Crouch Nurse Tanks carry brine to your De-Icer Equipment.  Tanks are designed to fit a flatbed body or trailer.  NCI engineers will work with you to ensure you get the best value for your investment. Call 800-241-1350 to speak with a knowledgeable representative.

Features:

  • Trailer Mounted Nurse Tank
  • Tank – Poly with 3 year warranty, sized to your specifications designed to fit into your trailer or flatbed truck *
  • Agitation to Keep Mixture Uniform
  • Skid or Direct Mount to Your Vehicle
  • Tie Down
  • Pump
  • Quick Fill

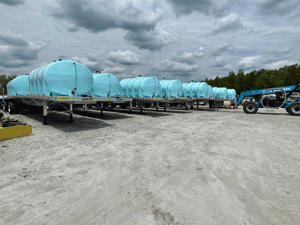

Dual 2635 Gallon Elliptical Tanks on Flatbed Trailers for Storage and Transportation of Brine.

NCI can customize the tanks to your specification. This picture shows flatbed trailers with dual 2635 elliptical tanks for brine transportation and spraying.

*Your vehicle must be rated to support the loaded tank. Multiply 8.34 pounds per gallon (weight of water) times the size of the tank. Example: A 1,000 gal tank weighs 8, 340 lbs.
