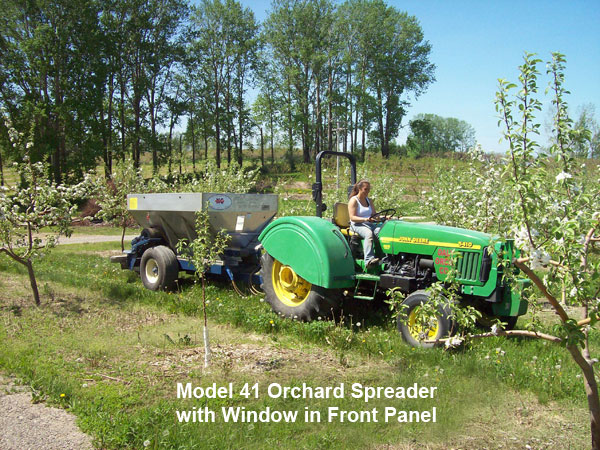

Model 41 – Orchard Spreader

NCI’s Orchard spreader is ideal for spreading in any orchard or vineyard. Let Newton Crouch built the best spreader for your needs.
NCI spreaders have a wide variety of options.

Customize your spreader to your requirements – not a one size fits all – by speaking with our knowledgeable representatives who can advise you on components to get the best equipment for your use. Call 800-241-1350 toll free

Orchard Spreader Features:

  • Capacity – 90 cu.ft. / 3 tons
  • Fertilizer and lime spreader
  • 304 stainless steel dishes, blades, conveyor, and hull
  • Trailer length fully supports hull
  • Trailer – powder coated, blue
  • Hull bolted on for easier trailer maintenance
  • Conveyor is split. Two, 8 inch web chains
  • Dishes are 24 inches with 6 blades
  • Spinners twin in series – double bearings grease able
  • Spindle – 6,000 lb rated, each side
  • Hub – 8 bolt
  • Hydraulic valve, NCI exclusive with anti-cavitation device, pressure relief valve, and check valve to prevent hooking up backwards; open/closed system selection and adjustable flow control while under load; compact system that requires less hydraulic hosing
  • Drive wheel laminated tire – 4.8 x 8, NCI special design
  • Tires – 14L x 16.1, 8 ply, other tires optional
  • Wheel center set at 52 in
  • Diverter
  • Pictures may show options that are not standard

Click Picture to view SlideShow

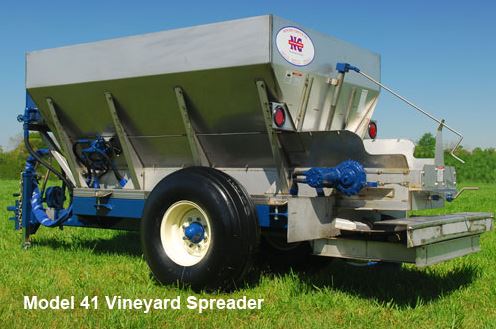

Model 41 Vineyard Spreader

When crafting your wine, we know you adhere to rigorous standards. At Newton Crouch Inc, we built spreaders ideal for your spreading needs. Our vineyard spreader is built with you in mind.

Vineyard Spreader Features:

  • Capacity 90 cu.ft./ 3 tons
  • Fertilizer and lime spreader
  • Hull is 8 foot long by 66 inches wide
  • 304 stainless steel dishes, blades, and hull
  • Trailer length fully supports hull
  • Trailer – powder coated, blue
  • Hull bolted on for easier trailer maintenance
  • Conveyor is 24 inch (wide) of stainless steel web chain
  • Dishes are 24 inch with 6 blades
  • Hub – 8 bolt
  • Jack –
  • Raven PWM Valve
  • Tires – 14L x 16.1, 8 ply, other tires optional
  • Wheel center set at 52 in
  • Requires Controller
  • Pictures may show options that are not standard

Options and Enhancements for Model 41 Orchard and Vineyard Spreaders

Drive Options for Orchard and Vineyard:

  • Tractor Hydraulics
  • Gear Box
  • Self Contained Hydraulics

Enhancements for Orchard and Vineyard:

  • Diverter with flaps
  • Reduction gears
  • Ladder
  • Window
  • Variable Rate
  • Weight Box
  • High side to increase cu.ft.
  • Frame Lift to increase ground clearance
  • Sprocket Guard High to protect fruit bearing branches
  • Herculiner

Check out NCI’s Orchard and Vineyard Flyer

Learn More

Watch a quick video as John Crouch highlights some features of the Blueberry-Orchard-Vineyard Spreader.
Features of a Blueberry-Orchard-Vineyard Spreader.
