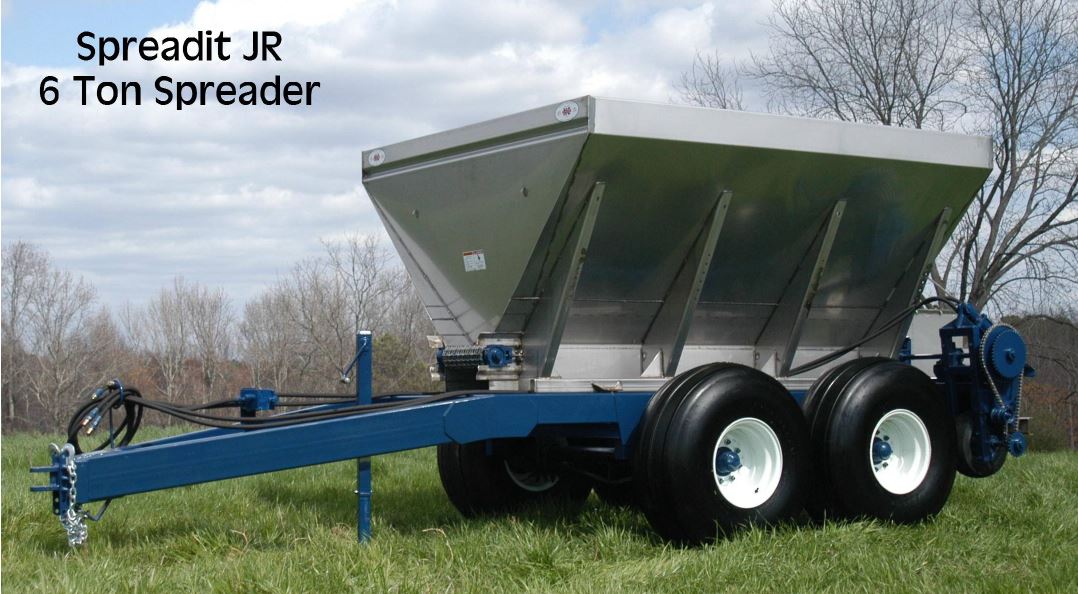

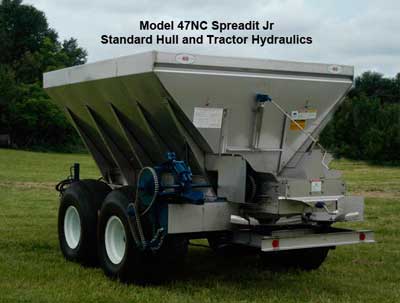

Model 47 – Spreadit JR Fertilizer and Lime Spreader

Our Spreadit Series are built for durability and are capable of handing many terrains and application styles. Since the 1960s, Newton Crouch Inc has lead the industry in fertilizer and lime spreaders and look forward to adding you to our list of satisfied customers. This tandem axle spreader will be tailored with features to ensure you get the best spreader for your farm. Customize your spreader to your requirements – not a one size fits all – by speaking with our knowledgeable representatives who can advise you on components to get the best equipment for your use. Call 800-241-1350 toll free


  • Capacity of 172 cu .ft. / 6 tons – Larger than most competitor models
  • Fertilizer and lime spreader
  • 304 stainless steel hull, dishes, blades, and conveyor
  • Trailer length fully supports hull for better stability
  • Trailer made of tubing and powder coated blue
  • Hull bolted on for easier trailer maintenance

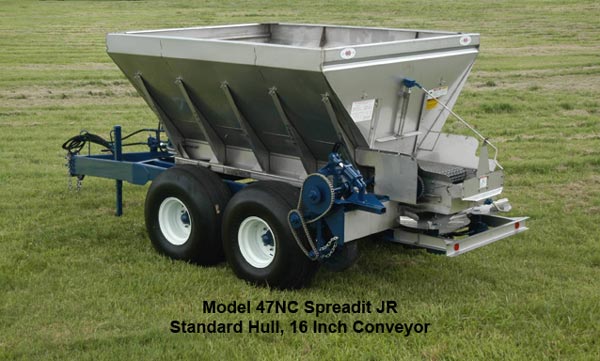

  • Conveyor widths of 16 or 24 inch, clinched chain

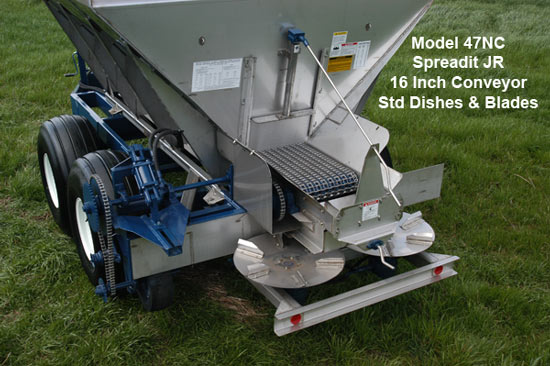

  • Dishes are 24 inch with 6 blades
  • Spinners set up twin in series with grease able double bearings
  • Spindles (4 total on unit) rated at 6,000 lb stress proof steel on each side
  • Hub – 8 Bolt
  • Jack – 7,000 lb drop leg

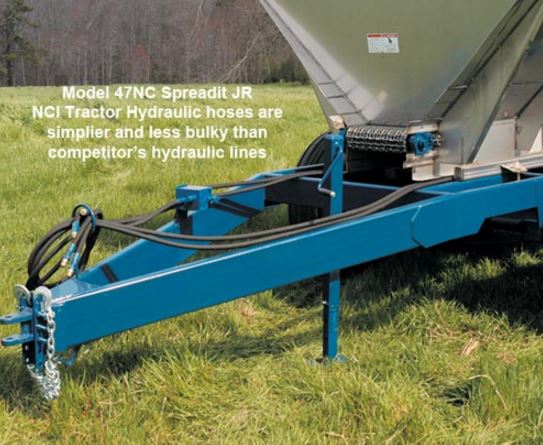

  • Hydraulic valve is an NCI exclusive with an anti-cavitation device, pressure relief valve, and check valve to prevent hooking up to your tractor backwards. Can be used for either an open or closed system.
  • Also has adjustable flow control while under load. This compact valve requires less hydraulic hosing resulting in a sleeker spreader.
  • Drive wheel is laminated, 4.8 x 8 tire. NCI special design
  • Tires – 16.5 x 16.1, 10 ply
  • Wheel centers set at 75 inch
  • Pictures may show options

Drive Options:

  • Tractor Hydraulics
  • Variable Rate
  • Drive Wheel
  • Self Contained Hydraulics


  • Window
  • Stainless gate jack cover
  • Heavy duty dishes & blades
  • Heavy duty spinner motors
  • LED or stop, tail, turn lights
  • Tarp
  • Various tire options

Check out NCI’s Model 47 Brochure
