Model 48 Single Axle Fertilizer Spreaders

Newton Crouch NC series spreaders are widely used from turf to farms and fields. Our superior design with fewer moving parts makes our fertilizer spreaders have low maintenance and simple setup.

NCI spreaders have a wide variety of options. Customize your spreader to your requirements – not a one size fits all – by speaking with our knowledgeable representatives who can advise you on components to get the best equipment for your use. Call 800-241-1350 toll free

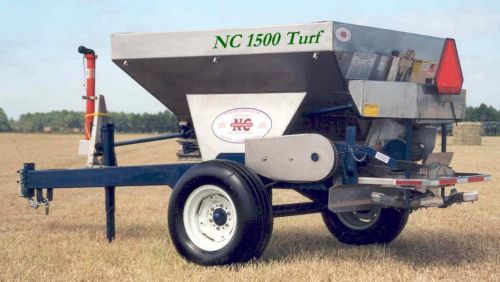

NC 1500 Features:

  • Capacity of 50 cu.ft. – 1.5 tons
  • Designed for fertilizer spreading
  • 50 foot spread pattern
  • 304 stainless hull, dishes, blades and conveyor
  • Trailer has powder coat paint in blue
  • Trailer tubing of 2 x 6 inch, reinforced
  • Conveyor chain width of 7 inches
  • Dual 19 inch dishes with 6 blades
  • Universal joint on spinner drive shaft
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Hubs – 6 bolt
  • Tongue jack – 7000 pound drop leg
  • Tires are 11L x 15 – 8 ply
  • Rope pull

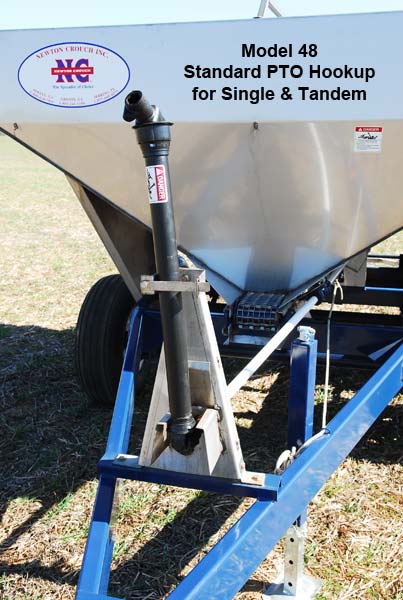

  • 540 PTO drive with twin spinners

NC 2000 Features:

  • Capacity of 72 cubic feet – 2 tons
  • Designed for fertilizer spreading
  • 50 foot spread pattern
  • 304 stainless hull, dishes, blades and conveyor
  • Trailer has powder coat paint, blue
  • Trailer tubing of 2 x 6 inch, reinforced
  • Conveyor chain width of 7 inches
  • Dual 19 inches dishes with 6 blades
  • Universal joint on spinner drive shaft
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Tires are 11L x 15 – 8 ply
  • Hubs – 6 bolt
  • Tongue jack – 7000 pound drop leg
  • Rope pull
  • 540 PTO drive with twin spinners

NC 3000 Features:

  • Capacity of 92 cubic feet – 3 tons
  • Designed for fertilizer spreading
  • 50 foot spread pattern
  • 304 stainless hull, dishes, blades and conveyor
  • Trailer frame has 2 x 6 inch tube, reinforced
  • Trailer is powder coat paint, blue
  • High Side
  • Brace for Side
  • Conveyor chain width of 7 inches
  • Dual 19 inch dishes with 6 blades
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Single Axle – ½ inch thick round tubes
  • Cover plates on trailer cross members – 304 stainless
  • Tires 12.5L x 15
  • Hubs – 6 bolt
  • Tongue jack – 7000 pound drop leg
  • Rope pull
  • 540 PTO drive with twin spinners

Brochure to learn more about the NC Series

Learn More

Watch a video of John Crouch explaining the features of the NC spreader.
See how easy it is to replace a pulley.




Click Picture to view SlideShow
