newton crouch Conveyor Parts
Newton Crouch has been building reliable conveyor parts since 1940, earning a reputation for quality and durability. Many of our spreaders run for years without needing replacement parts, but when you do, we know how important it is to get them fast. That’s why we make it easy to buy agricultural parts online, giving you quick access to Newton Crouch conveyor parts and other components you need to keep your equipment operating at its best. at its best.
All of our spreaders come standard with stainless conveyor chains designed to withstand heavy use. Our combo fertilizer and lime spreaders feature 16” or 24” conveyor chains, while our fertilizer-only spreaders use an 8” chain, available through our NC Series parts.
Whether you’re replacing a chain or searching for additional components, Newton Crouch provides the convenience of online ordering backed by decades of expertise. For a complete selection, browse our Parts Catalog and shop with confidence knowing you can easily buy agricultural parts online from a trusted name in the industry.
Have the Following Information to Ensure Correct Parts are Ordered:
- Serial number
- Width of Conveyor Chain
- Clinched or Straight Bed Chain
- Size of Take Up Bearing
- See Sprocket Assembly Drawing*

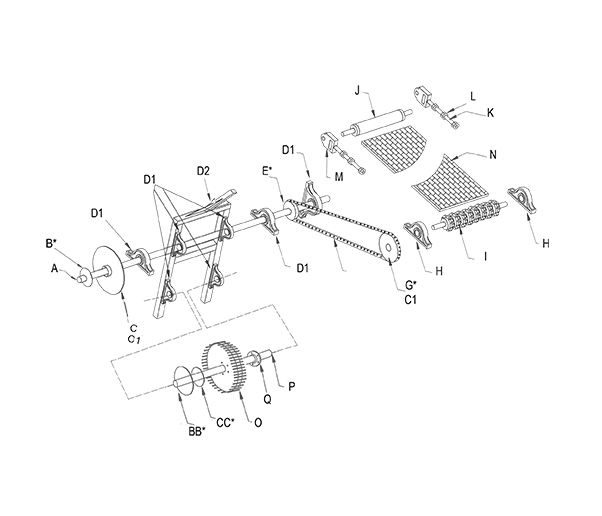

Press WHeel newton crouch Conveyor Parts
- 16″ or 24″ Chain Conveyors with Press Wheel
| Ref | Qty 16” | Qty 24” | Part No. | Description |
|---|---|---|---|---|
| A | 1 | 1 | NC-015049U** | Jack Shaft, 1¼” x 36” |
| A | 1 | 1 | NC-015092AH** | Jack Shaft, 1¼” x 40” |
| A | 1 | 1 | NC-015092AI** | Jack Shaft, 1¼” x 45” |
| C1 – on all spkts | KE-516112 | Key, 5/16” x 1½” | ||
| D1 | 3 | 3 | BR-PB114◊ | PB Bearing, 1¼” on Brackets |
| D1 | 4 | 4 | BR-PB114◊ | PB Bearing, 1¼” on H-Frame |
| D1 | 14 | 14 | BN-SSHH122 | Hex Head Bolt, ½” x 2”, SS |
| D1 | 14 | 14 | BN-SSHN12 | Hex Nut, ½”, SS |
| D1 | 14 | 14 | BN-SSLW12 | Lock Washer, ½”, SS |
| D1 | 14 | 14 | BN-SSFW12 | Flat Washer, ½”, SS |
| D2 | 1 | 1 | NC-015049AZ | H Frame Assy Narrow |
| D2 | 1 | 1 | NC-015049DA | H Frame Assy Universal |
| D2 | 1 | 1 | NC-015054A | H Frame Assy Truck w/ Top Link |
| F | 10’ | 10’ | CA-RC60SS | Roller Chain, SS, 60, Master & Half Link |
| H | 2 | – | BR-PB112◊ | PB Bearing, 1 1/2” on RR Assy |
| H | – | 2 | BR-PB200◊ | PB Bearing, 2” on RR Assy |
| H | 4 | 4 | BN-SSHH122 | Hex Head Bolt, ½” x 2”, SS |
| H | 4 | 4 | BN-SSHN12 | Hex Nut, ½”, SS |
| H | 4 | 4 | BN-SSLW12 | Lock Washer, ½”, SS |
| H | 4 | 4 | BN-SSFW12 | Flat Washer, ½”, SS |
| I or J | See Roller Parts | |||
| K | 2 | 2 | NC-025005Q | Take Up Screw, 5/8” x 12” |
| L | 4 | 4 | BN-SSAHN58 | Nuts, SS, Acme Thread, ⅝” |
| M | 2 | 2 | BR-TU112IMP◊ | Take Up Bearing, 1½” (match FR) |
| M | 2 | 2 | BR-TU100IMP◊ | Take Up Bearing, 1” (match FR) |
| N | 1 | – | CA-CBCW16 | Conveyor Chain, 16” Clinched |
| N | 1 | – | CA-BCW16 | Conveyor Chain, 16” Straight |
| N | – | 1 | CA-CBCW24 | Conveyor Chain, 24” Clinched |
| N | – | 1 | CA-BC24 | Conveyor Chain, 24” Straight |
| N | – | 1 | CA-BCHD24 | Conveyor Chain, HD 24″ Straight,Reinforced |
| – | 1 | – | CA-SP16 | Splice Pin, 16” |
| – | – | 1 | CA-SP24 | Splice Pin, 24” |
| O | 1 | 1 | NC-015104G | Drive Wheel Assy, Single Paddle, Pull Type, 4.8 x 8 |
| O | 1 | 1 | HA-101300 | Bolts for Drive Wheel, Steel Wheel |
| O | 1 | 1 | WT-ASSY5X8X15LAMO | Laminated Tire, Pull Type, 4.8 x 8 |
| O | 5 | 5 | HA-101325 | Bolts for Laminated Air-filled Tire, 1 1/4″ |
| O | 1 | 1 | WT-ASSY480X8B | Air Tire, Rubber Filled, Pull Type, 4.8 x 8 |
| O | 1 | 1 | WT-ASSY205X8X1000 | Air Tire, Truck, 20.5 x 8 |
| P | 1 | 1 | NC-015049AV | Drive Wheel Shaft, 1¼” x 20” |
| P | 1 | 1 | NC-015092AG | Drive Wheel Shaft, 1¼” x 24” |
| P | 1 | 1 | NC-015092BK | Drive Wheel Shaft, 1¼” x 27” |
| Q | 1 | 1 | CN-015049AY | Drive Wheel Hub, 1¼” |
| Q | 1 | 1 | NC-015092BH | Clutch for Drive Wheel, Truck |

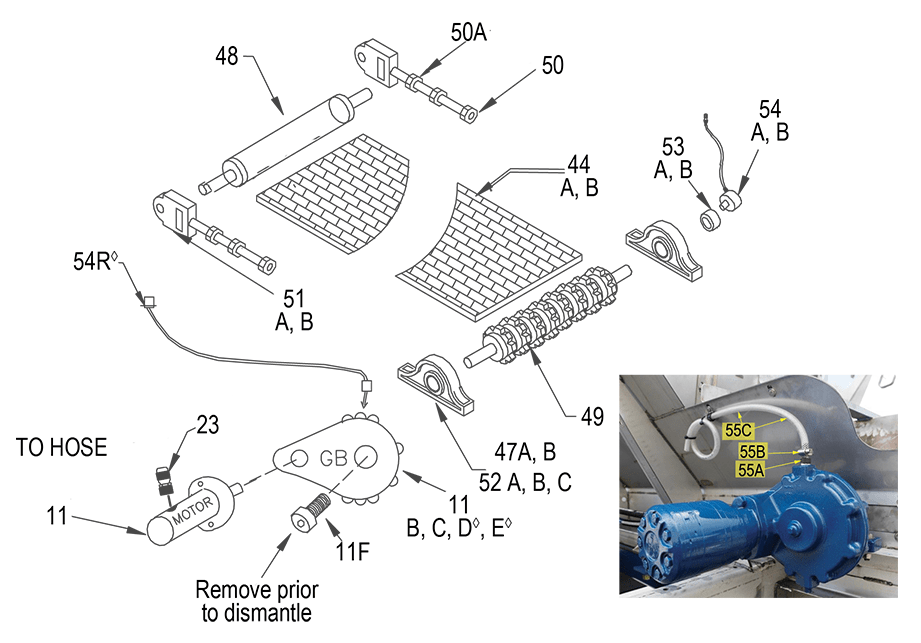

Controller newton crouch Conveyor Parts
- 16″ or 24″ Chain Conveyor with Controller
| Ref | Qty 16” | Qty 24” | Part No. | Description |
|---|---|---|---|---|
| 11 | 1 | 1 | HM-RE10 | Hydraulic Motor, Parker, RE 10 |
| HM-RE10E | Hydraulic Motor, Eaton, RE 10 | |||
| 11 | 1 | 1 | HM-RE14 | Hydraulic Motor, Parker, RE14 |
| HM-RE14E | Hydraulic Motor, Eaton, RE14 | |||
| 11 | 1 | 1 | HM-RE18 | Hydraulic Motor, Parker, RE18 |
| HM-RE18E | Hydraulic Motor, Eaton, RE18 | |||
| 11 | 1 | 1 | HM-RE24 | Hydraulic Motor, Parker, RE24 |
| HM-RE24E | Hydraulic Motor, Eaton, RE24 | |||
| 11B | 1 | – | GB-301095S | Gear Box, 1½” LH, No Sensor |
| 11C | 1 | 1 | GB-301075S | Gear Box, 2” LH, No Sensor |
| 11D◊ | 1 | 1 | GB-301098S | Gear Box, 1½” LH, Sensor ◊ |
| 11E◊ | 1 | 1 | GB-301091S | Gear Box, 2” LH, Sensor ◊ |
| 11F | 1 | 1 | BN-AHSH5161 | Allen Head Screw, 5/16” x 1” (2” Shaft) |
| 23 | 2 | 2 | HH-848FSO1210 | Fitting, Hydraulic, ¾ JIC x ⅝” O Ring |
| 44A | 1 | – | CA-BCW16 | Conveyor Chain, 16″ Straight |
| 44A | 1 | – | CA-CBCW16 | Conveyor Chain, 16″ Clinched |
| 44B | – | 1 | CA-BC24 | Conveyor Chain, 24″ Straight |
| 44B | – | 1 | CA-BCHD24 | Conveyor Chain, HD 24″ Straight, Reinforced |
| 44B | – | 1 | CA-CBCW24 | Conveyor Chain, 24″ Clinched |
| 47A | 2 | 1 | BR-PB112** | Pillow Block Bearing, 1½” |
| 47B | 2 | 2 | BR-PB200** | Pillow Block Bearing 2” |
| 47B | 2 | 2 | BR-PB200HD | Heavy Duty Pillow Block Bearing, 2″ |
| 48 and 49 | See Roller Parts Parts | |||
| 50 | 2 | 2 | NC-025005Q | Take Up Screw, ⅝” x 12” |
| 50A | 2 | 2 | BN-SSAHN58 | Take Up Screw Nut, ⅝” |
| 51A | 2 | 2 | BR-TU112IMP** | Take Up Bearing, 1½” |
| 51B | 2 | 2 | BR-TU100IMP** | Take Up Bearing, 1” |
| 52A | 4 | 4 | BN-SSHH122 | Hex Head Bolt, ½” x 2” |
| 52B | 4 | 4 | BN-SSHN12 | Hex Nut, ½” |
| 52C | 16 | 16 | BN-SSFW12 | Flat Washer, ½” |
| 53A | 1 | 1 | NC-015005DNP | Rear Roller Adapter, 2” LH Slot Sensor |
| 53B | 1 | 1 | NC-015005DVP | Rear Roller Adapter, 1½” LH Slot Sensor |
| 54A | 1 | 1 | RA-0630171443 | Raven Slot Sensor, 25’ Cable, NC Std |
| 54B | 1 | |||
| 1 | 1 | MD-1200009 | Dickey John 360 Slot Senor, 25’ Cable | |
| 1 | MD-1200009A | 360 Slot Sensor Adapter Cable | ||
| 54R◊ | 1 | 1 | MD-1605004KIT | MidTech Rate Senor & Cable |
| Ref No. 54R◊ | ||||
| Kit Includes | MD-4505114 | Sensor Cable | ||
| MD-1605000 | Rate Sensor | |||
| MD-5005007 | MT Rate Sensor U-Cup Seal | |||
| MD-6010000 | Clamp, Loop, 304 SST | |||
| 55A | 1 | 1 | TP-HB038 | Hose Barb, 3/8″ |
| 55B | 1 | 1 | CL-0600 | Clamp, 3/8″ Stainless Steel |
| 55C | 1 | 1 | HO-CT38BPVC | Hose, 3 Feet Needed |
