Orchard & Vineyard Spreaders

Newton Crouch understands the intricacies of orchard and vineyard management. Our Orchard & Vineyard Spreaders are meticulously engineered to provide the ideal spreading performance for these delicate, permanent crops. With customizable features, advanced technology, and adjustable rates, our spreaders enable you to achieve superior crop health and maximize your yields.

Model 46 Orchard & Vineyard Spreader

Capacity – 90 ft³/ 3 Tons
Fertilizer and Lime Spreader
304 Stainless Steel Dishes, Blades, Conveyor, and Hull
Conveyor – 16”, 24” or Two 8” Split Chains
Dishes: 24″ with 6 Blades
Window

Drive Wheel with Tractor Hydraulics
Controller Driven
Variable Rate
ISO Ready
Self Contained Hydraulics

Trailer Length Fully Supports Hull
Trailer – Powder Coated, Blue
Hull Bolted on for Easier Trailer Maintenance
Spindle – 6,000 Lb Rated, Each Side
Hub – 8 Bolt
Tires – 14L x 16.1, 8 Ply, Other Tires Optional
Wheel Center Set at 52”

Diverter With Flaps
Reduction Gears
Ladder
Variable Rate
Weight Box
High Side to Increase Capacity
Frame Lift to Increase Ground Clearance
Sprocket Guard High to Protect Fruit Bearing Branches
Herculiner

Rate Chart

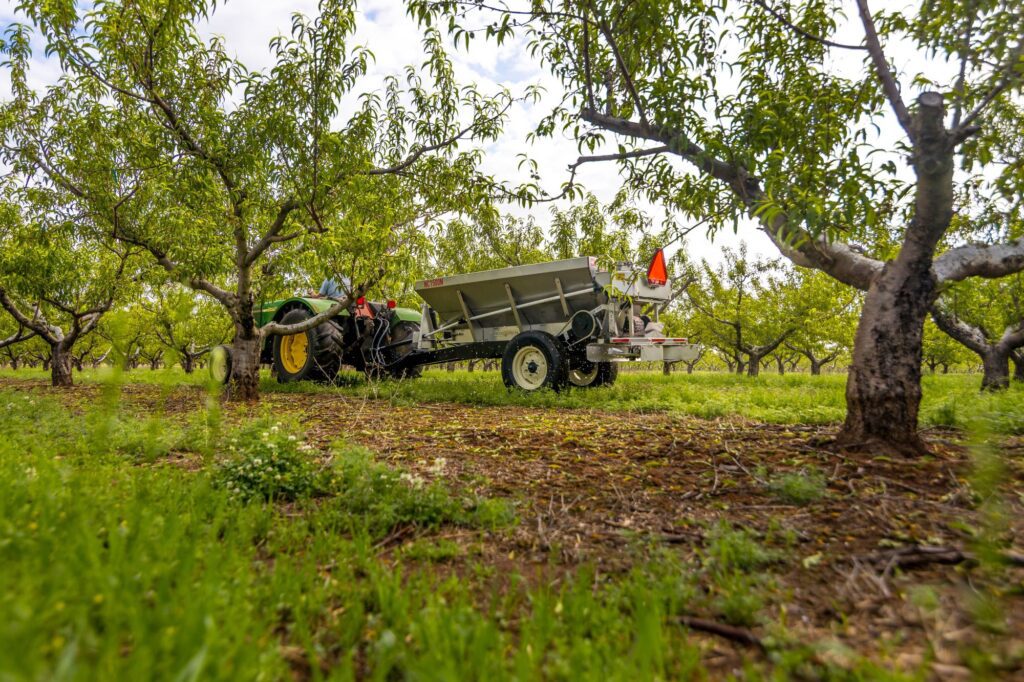

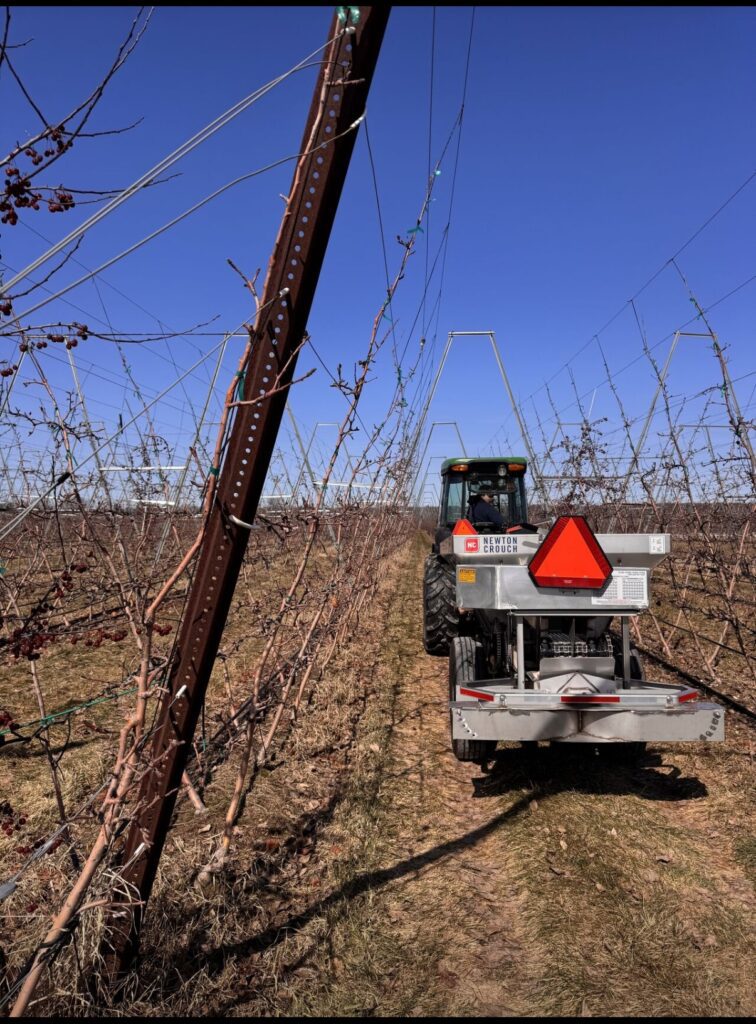

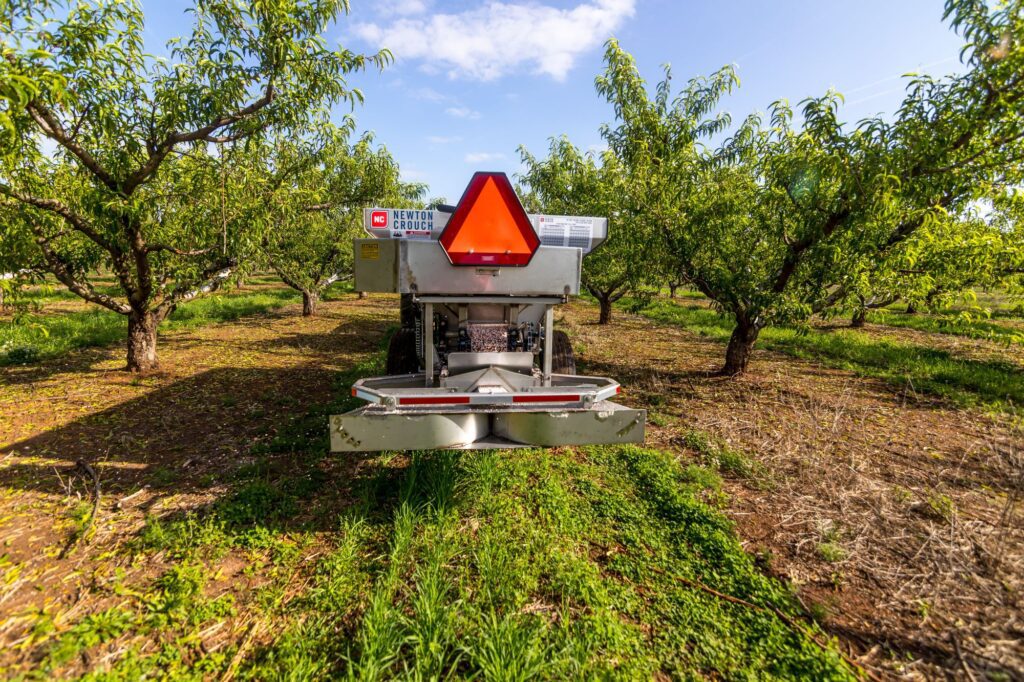

Model 48 NC1500N Orchard-Vineyard Fertilizer Spreader

Designed for Fertilizer Only
304 Stainless Steel Hull, Dishes, Blades, Floor
Chain: 7” Stainless Conveyor
Drive: 540 PTO Spinner
Manual Drive Engagement, Rope Pull
High-Low Speed Delivery System
Universal Joint on Drive Shaft
50 Ft. Swath with Dual Spinners
Enclosures and Bearings in Stainless Steel

NC1500N

Capacity: 1.5-Ton (50 ft.3)
Wheel Centers: 39”
Overall Dimensions:
- Width: 50.25″
- Length: 171″
- Height: 55.5″

NC1500

Capacity: 1.5-Ton (50 ft.3)
Wheel Centers: 62”

NC2000

Capacity: 2-Ton (74 ft.3)
Wheel Centers: 77”

NC3000

Capacity: 3-Ton (92 ft.3)
Wheel Centers: 77”

Frame: Heavy Duty Reinforced Steel Tubing, Powder Coated, Blue
Hubs: 6-Bolt
Round Axle, Single
Tires:
- NC1500N: 9.5L x 15
- NC1500, NC2000, NC3000: 11L or 12.5L
Hitch: Category 3
One Safety Chain

Hydraulic Engagement
Hydraulic Spinners
Variable Rate
Window
Wheel Centers: Narrow & Special Widths
Tires: See Table
Road Rated Tires Available for All Models
Tarp: Fitted with Stainless Steel Truss Bow; Side-To-Side with or without End Caps
Brakes: Hydraulic Surge on Single Axle
Lights: Stop, Tail, Turn

NC1500N Brochure NC Series Brochure Rate Chart

Model 41 Grove Spreader

Hopper: 8′ x 72″
Fertilizer and Lime Spreader
304 Stainless Steel Dishes, Blades, Conveyor, and Hull
Conveyor – 16”, 24” or Two 8” Split Chains
Dishes: 24″ with 6 Blades

Drive Wheel with Tractor Hydraulics
Controller Driven
Variable Rate
ISO Ready
Self Contained Hydraulics

Trailer Length Fully Supports Hull
Trailer – Powder Coated, Blue
Hull Bolted on for Easier Trailer Maintenance
Spindle – 12,000 Lb Rated, Each Side
Hub – 8 Bolt
Tires – Variety of Tires

Diverter With Flaps
Reduction Gears
Ladder
Variable Rate
Weight Box
High Side to Increase Capacity
Frame Lift to Increase Ground Clearance
Sprocket Guard High to Protect Fruit Bearing Branches
Herculiner
Guards
Tree See Technology

Slimline Turbo-Mist Sprayer

500 or 1,000 Gallon Stainless Steel Tank
400 PSI, 4″ Gauge, Stainless Mounted on Front
Sump Drain on Tank
Paddle Tank Agitation
Vented Lid with Stainless Steel Strainer Basket

Diaphragm Pump, Udor Zeta 170, Belt Drive
2″ ARAG Suction Strainer with Gate Valve
3″ Quick Fill – 3″ Inlet, Requires Coupler
Tank Handle at Step
Control, Electric 12 Volt, On / Off Valves & Pressure Regulator
Speed Gearbox for Turbine Fan – High/Low (2 Speed)
Pressure Filters, Flushable, Brass – Mounted between Pump & Boom

30″ Turbine
Outlet, 30″ – To Direct Wind – 13 Nozzles Per Side
Boom Total 26 Nozzles with Anti-Drip for Orchard Head
Remote Grease Point for Turbine Bearings

Main Frame 2″ X 8″ Steel Tubing, Powder Coated
Turbo Steer Hitch
Step, Mounted by Bolting On, Aluminum
Wheels on 500 gal – 8 Bolt 14L x 16.1 Tires
Wheels on 1,000 gal – 8 Bolt 21.4 x 16.1 x AX2.75R8 Tires

Blueberry SProckets

Change your rates easily with our half, third, or fourth rate sprocket kits on drive wheel spreaders.

Diverter with flaps

Get your product exactly where you need it with an optional diverter.

Narrow Hopper

The orchard, vineyard, and grove spreaders have narrow hoppers and are low profile.
