3-Point Hitch Spreader

Newton Crouch is known for well-built, dependable equipment and our newest model, the 3-Point Hitch Spreader, is a great addition to our product line. Our engineers have listened to customers to develop a spreader that is built tough while giving growers the flexibility of a hitch mount. Designed for fertilizer and lime application, the 3-Point Hitch Spreader is a combo unit that can cover a variety of spreading needs within one compact attachment.

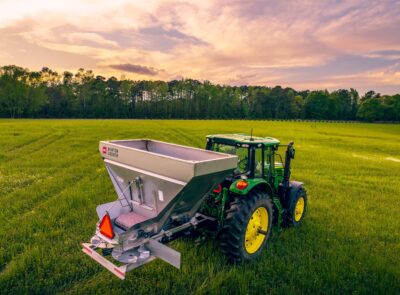

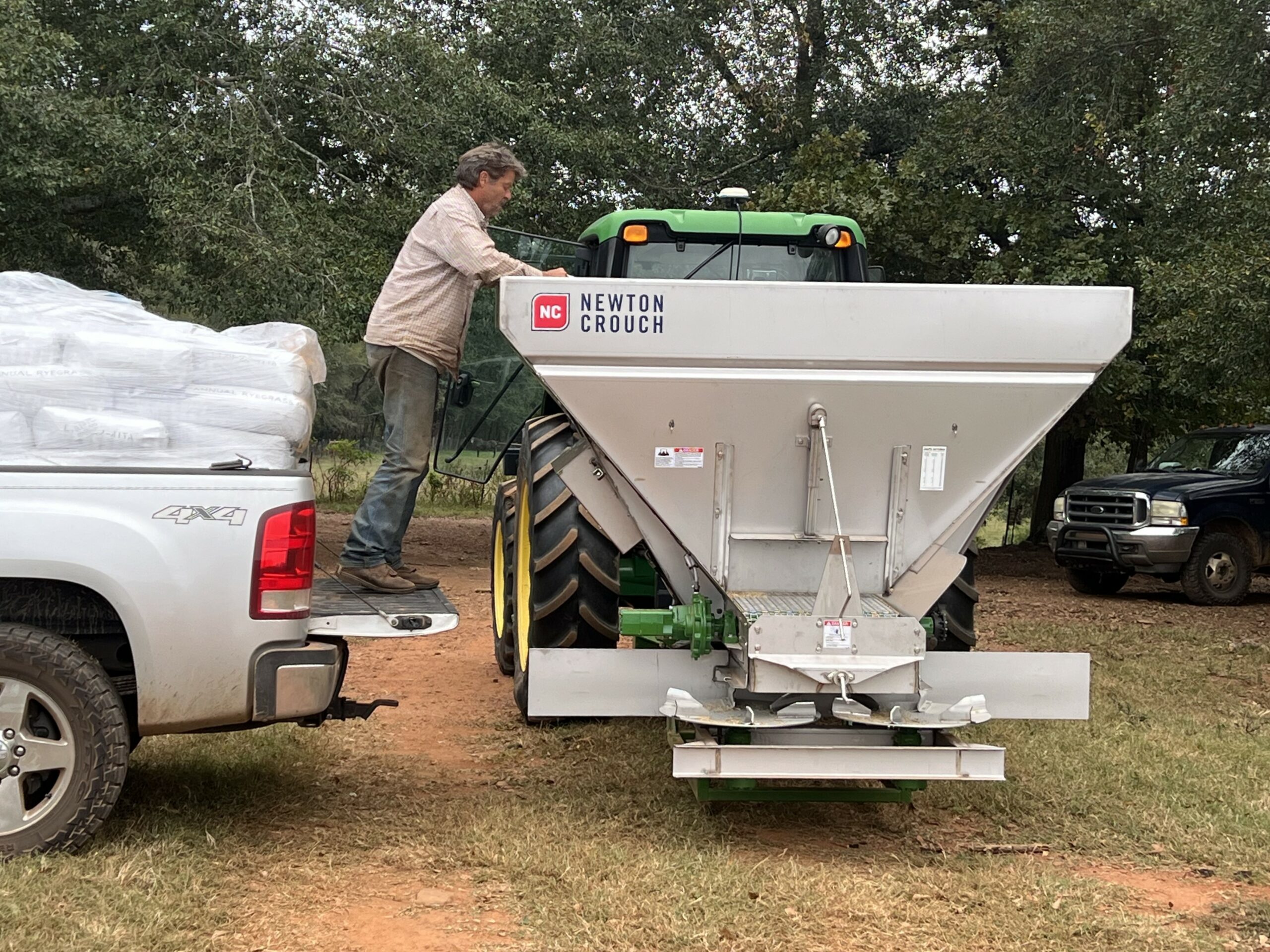

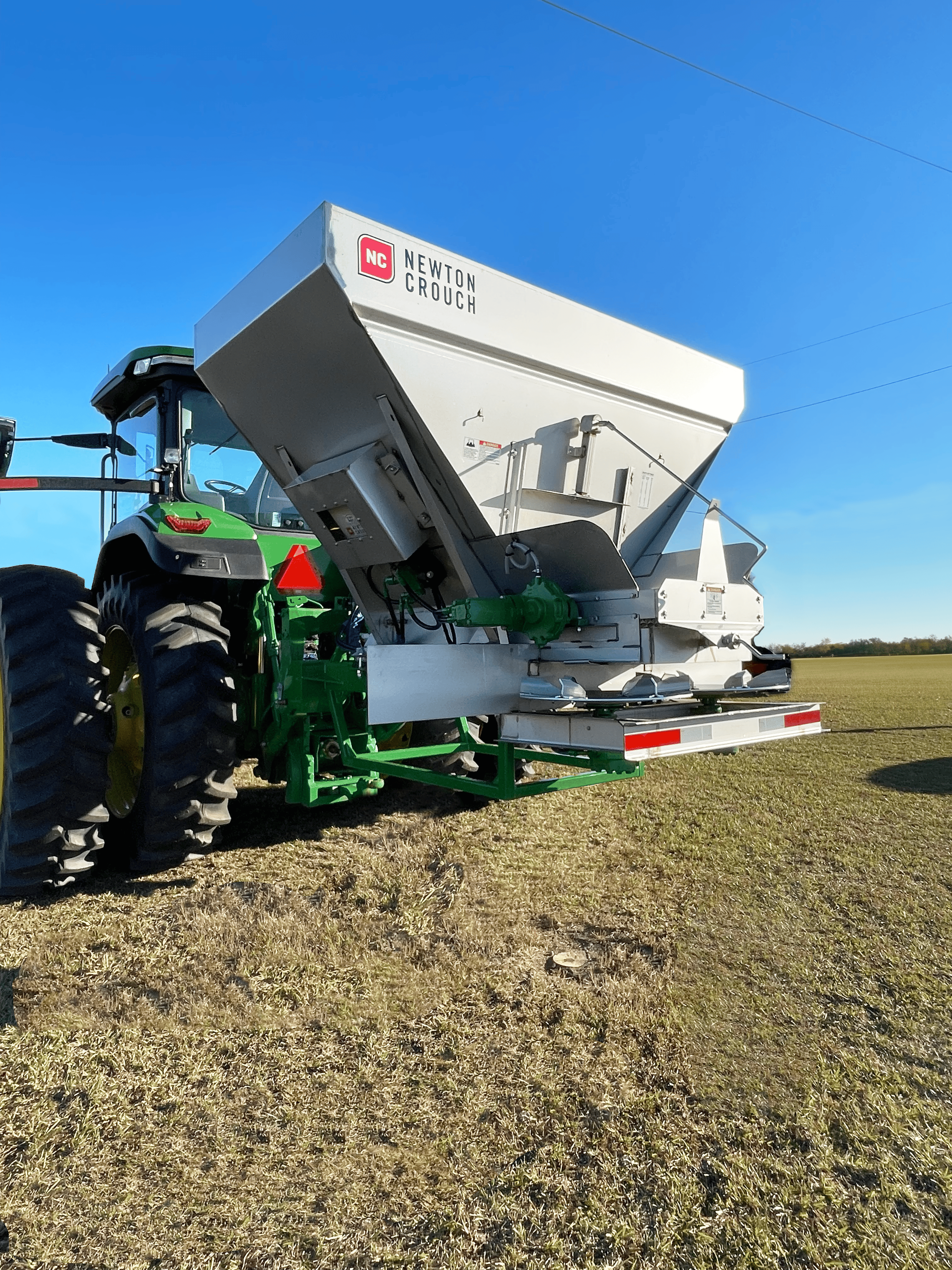

Model 20 3-Point Hitch Spreader

Designed for Fertilizer and Lime Application
3 Tons
304 Stainless Hopper, Gate, Floor
Bolt On Hopper to Frame
Full Length Tubing, Stainless
Chain: 24” Stainless Conveyor
Tractor Hydraulic 4-Hose System
Hydraulic Valve with Built in Relief
Chute: Adjustable, Stainless
Spinner Motors with Case Drain
Heavy Duty 24” Stainless Dishes with 6 Blades

All Hydraulic
Variable Rate
ISO Ready

2″ x 6″ Frame Tubing
Powder Coated Paint
Cat 2 / 3 Quick Hitch Compatible

XRT: Up to 80 Foot Spread Pattern
Heavy Duty Spinner Motors
Fan Speed Sensor

3-Point Hitch, Model 20

Download Brochure

Flat, Consistent Spread Pattern

Optimal crop coverage is dependent on a consistent and accurate spread pattern. With our unwavering commitment to precision and quality, you can trust our spreaders to deliver the results you need.

Tractor Requirements

Ask your sales representative about what requirements are needed.

Controller Ready

Connect with the controller of your choice to spread straight rate or variable rate. The spreader is ISO ready.

PERFECT FOR GROWTH-MINDED FARMERS

Compare Our Spreaders:

	3-Point Hitch Model 20	Medium Clearance Model 49	High Clearance Model 40
Hopper Size	4′ x 102″ with 8″ High Side / 3-Tons (93 ft³)	10’ x 90” / 5-Tons (172 ft³) 10’ x 102” / 6-Tons (198 ft³)	12’ x 102” / 8-Tons (242 ft³)
Hopper Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Spinner Drive	Tractor Hydraulics (Standard)	Tractor Hydraulics (Standard)	Tractor Hydraulics (Standard)
Delivery	All Hydraulic with Controller for Straight or Variable Rate	Press Wheel, All Hydraulic with Controller for Straight or Variable Rate, Gear Box, Belt Drive	All Hydraulic with Controller for Straight or Variable Rate
Trailer	2”x 6” Tube	2”x 6” Tube	4” x 6” Tube
Axle	Not Applicable	Fixed Axles	Adjustable Axles
Tires	Not Applicable	Standard: 11.25; Turf 18.4, Tractor Tires 380	Tractor Tires: 380R or 480R
Wheel Centers	Not Applicable	72″; 60″ to 72″ Reversible; 74″; 76″; 78″, 80″; Adjustable	Adjustable from 72″ to 120″
Hitch	Cat 2 / 3 Quick Connect	Standard: Swivel Optional: Spring Swivel, Category 3 Clevis/Pintel	Category 4 Clevis/Pintel
Tarp	Optional: Fitted	Optional: Fitted or Side to Side with End Cap	Optional: Fitted or Side to Side with End Cap
