newton crouch Rear End Dry PArts
At Newton Crouch, we make it simple to buy agricultural parts online, helping farmers and operators keep equipment running efficiently. Our selection of Newton Crouch rear end dry parts is built for durability and performance, ensuring your machinery stays productive with minimal downtime.
Rear end dry parts are essential to maintaining the efficiency and reliability of your equipment. Whether you’re handling routine maintenance or urgent repairs, having quick access to the right parts makes all the difference. By sourcing directly from Newton Crouch, you can trust that every part is manufactured to meet the highest standards of quality.
Beyond rear end dry parts, we provide a full range of agricultural equipment parts online, giving you a convenient, reliable source for everything from sprayers to spreaders. With decades of expertise behind every product we sell, our focus is on helping you keep your operations moving smoothly.
Explore our Newton Crouch rear end dry parts today and experience the convenience of ordering from a trusted name in the agricultural industry.
Clinched Chain or Belt-Over-Chain
- Common Rear Parts for Pull Type or Chassis Mounted Spreaders
- Fertilizer and Lime
- 16″ or 24″ Clinched or Straight Chain
- 24″ Belt-Over-Chain
- Row Crop Series (Model 49 & 40)
- Tandem Axle Series (Model 47)
- Chassis Mounted (Model 54)
- Single Axle Low Clearance (Model 57)

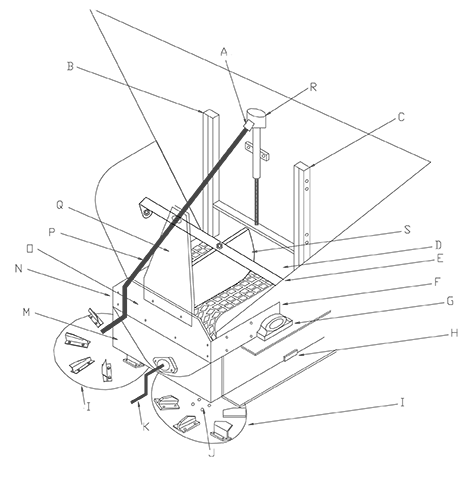

Ref No. | 16” | 24” | 24” BOC | Part No. | Description |
---|---|---|---|---|---|
A | 1 | 1 | 1 | JA-BB100002801A00 | Gate Handle Universal Extension, MS |
A | JA-SSBB100002801A | Gate Handle Universal Extension, SS | |||
B | 1 | 1 | 1 | NC-025010ALH | Gate Slide, LH |
C | 1 | 1 | 1 | NC-025010ARH | Gate Slide, RH |
D | 1 | – | – | NC-025010B | Metering Gate, 16” |
D | – | 1 | – | NC-025010C | Metering Gate, 24” |
D | – | – | 1 | NC-025010AM | Metering Gate, 24” BOC |
E | – | – | – | Conveyor Parts, 16” & 24” Conveyor Page | |
F | 1 | 1 | – | NC-025008KRH | Chute Side Bracket, RH |
F | – | – | 1 | NC-025008BRRH | Chute, Side Bracket, RH, BOC |
G | 2 | – | – | BR-PB112 | Pillow Block Bearing, 1 ½” |
G | – | 2 | – | BR-PB200 | Pillow Block Bearing, 2” |
G | – | – | 2 | BR-PB200HD | Pillow Block Bearing, 2”, HD |
H | 1 | 1 | 1 | SM-N147 | Chute, Scale, Weld On |
I, J | – | – | – | Spinner Dishes & Blades | |
K | 1 | 1 | 1 | NC-0*5008AP | Chute Screw w/ Bearing * 1 = Mild, 2= Stainless Steel |
M | 1 | – | – | NC-025008AAA | Chute Assy w/ Coupling, 16” |
M | – | 1 | 1 | NC-025008AO | Chute Assy w/ Coupling, 24” |
M1 | 1 | 1 | 1 | CN-015008AWA | Chute Coupling w/ Grease Fitting, MS |
M1 | 1 | 1 | 1 | CN-025008AWA | Chute Coupling w/ Grease Fitting, SS |
N | 1 | 1 | NC-025008KLH | Chute, Side Bracket, LH | |
N | – | – | 1 | NC-025008BRLH | Chute, Side Bracket, LH, BOC |
O | 1 | – | – | NC-025008A | Chute Bearing Bracket, 16” |
O | – | 1 | – | NC-025008B | Chute Bearing Bracket, 24” |
O | – | – | 1 | NC-025008BQ | Chute Bearing Bracket, BOC |
P | 1 | 1 | 1 | NC-025010T | Gate Handle Extension |
P | 1 | 1 | 1 | NC-025010AL | Gate Handle Extension, Model 47 NC Spreadit |
Q | 1 | 1 | 1 | NC-025011A | Gate Handle Extension Bracket |
R | 1 | 1 | 1 | JA-620198 | Gate Jack w/ Stubs,SS |
S | 1 | 1 | 1 | NC-025008CF | Chute Divider & Brace Assy, Model 54 Only |
Ref No | Qty | Part No. | Description |
---|---|---|---|
1 | 1 | WTASSY20581005 C | Air Tire Assembly |
2 | 1 | CN-015049AY | Drive Wheel Hub, 1 1/4″ |
3 | 8 | BR-PB114 | Drive Wheel Shaft, 1 1/4″ x 27″ |
4 | 1 | NC-015092BK | Drive Wheel Shaft, 1 1/4″ x 27″ |
5 | 1 | NC-015049AU | Jack Shaft, 1 1/4″ x 36″ |
6 | 1 | SP-60B44X114 | 60B Sprocket, 44 tooth, 1 1/4″ Bore |
7 | 1 | SP-60B36X200 | 60B Sprocket, 36 Tooth, 2″ Bore |
8 | 1 | SP-60B12X114 | 60B Sprocket, 22 Tooth, 1 1/4″ Bore |
9 | 1 | SP-60B22X114 | 60B Sprocket, 22 Tooth, 1 1/4″ Bore |
10 | 2 | SP-60B15X12 | 60B Idler Sprocket, 15 tooth, 1/2′ Bearing |
11 | 10′ | CA-RC60SS | Roller Chain, 10′ |
12A | 6 | NC-025007ABLH | 11 1/4″ Spinner Blade, SS, 1/4″ Top Angle, LH |
12B | 6 | NC-025007ABRH | 11 1/4″ Spinner Blade, SS, 1/4″ Top Angle, RH |
13 | 2 | PM-025006S NC-025006S | 30″ Flat Spinner Dish, SS, 1/4″ Universal 30″ Bent Spinner Dish, SS, 1/4″ Universal |
14 | 2 | NC-015092BJ | Spinner Shaft, 1 1/4″ x 31″ INV MTR |
15 | 2 | PP-PVC114 | PVC 1 1/4″ SCH 40 Pipe |
16 | 2 | NC-015006J | Spinner Hubs without Seal, 1 1/4″ |
17 | 2 | UJ-2205002205000 | Universal, 1″ x 1 1/4″ |
18 | 2 | HMM2640A2BFO | Spinner Motor, HD, O-Ring Ports, 2 BLT Flange |
19 | 1 | NC-025010T | Gate Handle Extension |
20 | 1 | JASSBB100002801A | Gate Handle Extension Universal |
21 | 1 | JA-620198 | Gate Jack |
22 | 1 | NC-025008AP | Chute Screw with Bearing, SS |
23 | 1 | CN-025008AWA | Chute Coupler with Grease Fitting, SS |
24A | 1 | TRSRTSTSLP90120 | SRT STS TARP KIT 90” X 120” |
24B | 1 | TRSRTSTSTP90120 | SRT STS TARP 90” X 120” |
25 | 1 | LW-1492161 | Light Bar, Spot-Flood Combo, 2RS 24 LED, Clear |
26 | 2 | LW-ZV417KR2 | Light DOT |
27 | 2 | LW-5627511 | 3/4″ Red Marker, Red with Grommet & Plug |
28 | 1 | NC-015005EN | Rear Roller Assembly, 24″ 2″ X 36″, HD Chain 13 Sprocket |
29 | 2 | BR-PB200 | Bearing, 2″ Pillow Block |
30 | 1 | CA-BCHD2423 | SS, Welded, 24″ x 23′ Bed Chain, HD |
