Liquid Feed Trailer

The Newton Crouch Liquid Feed Nurse Trailer allows you to bring molasses based supplement to your livestock with ease. Our convenient, cost-effective, and easy-to-handle nurse trailer can help give your heard added minerals, vitamins, protein and energy.

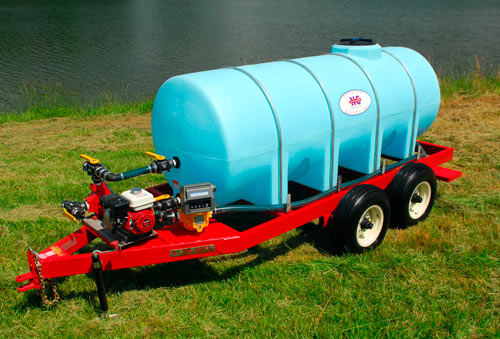

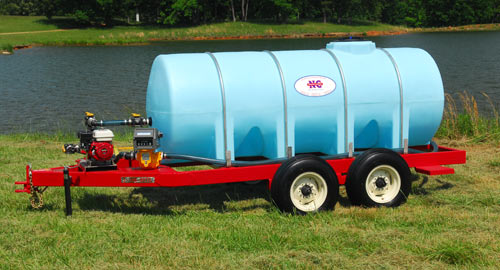

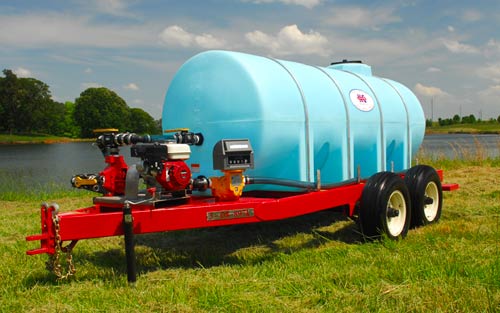

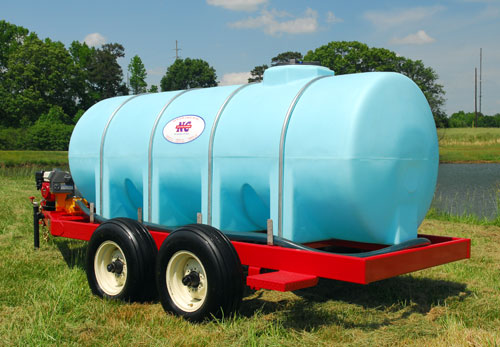

Model 56 Liquid Feed Nurse Trailer

• Features
• Trailer
• Options

• Tank Options: 1,025 or 1635 Gallon Norwesco Polyethylene Warranty
• Tank in Premium Weight, Blue
• Transfer Pump Platform
• Hose Brackets

• Main Frame – Tubing
• Paint – Red Powder Coated
• 14,400 GVWR Capacity
• Hubs – 6 Bolt On 6” Centers
• Tires – 11L x 15, 8 Ply
• Jack – 2,000 lb. With 15” Travel
• Hitch – Adjustable Clevis

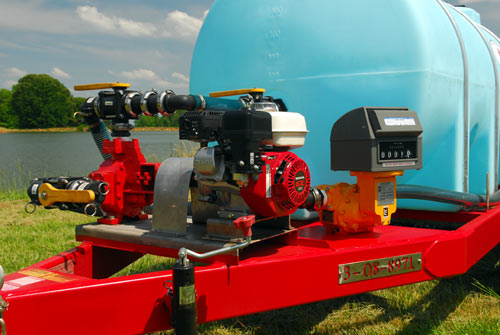

• Pump Kit – 3.5 hp 2″ Pump, Engine, Suction and Discharge Hoses with Hose Holders
• Upgrade to 5.5 hp Pump
• 5,000 Lb. Jack
• Y-Strainer
• 90o On / Off Nozzle
• Safety Chains
• Lights
• Chemical Inductor
• Black Tank
• Sight Gauge
• Surge Brakes – Single or 2 Axles
• 2″ Roadway Spray Nozzles
• Air Gap Loading
• Skid Available
