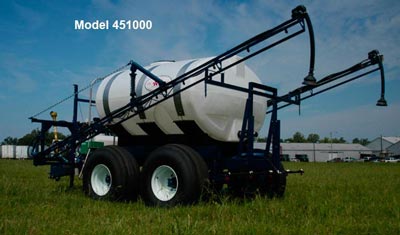

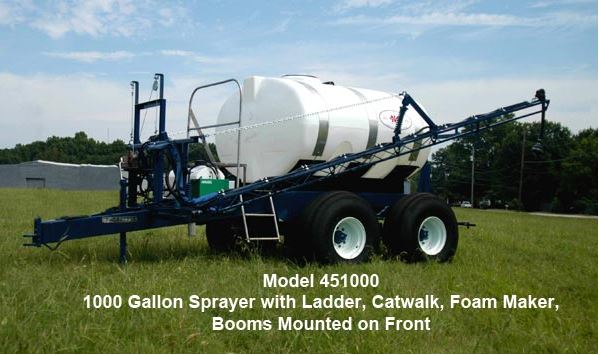

Model 451000 Pull Type Sprayer, Tandem Axle

Since the 1940s, Newton Crouch has prided itself in manufacturing innovated sprayers and fertilizer applicators. Our sprayers are used in a variety of applications from the fields to golf courses. Don’t worry, when trying to decide which Newton Crouch sprayer best fits your needs, our representatives will assist you in pump, boom lengths, and nozzle types.


  • Tank capacity of 1000 gallon, poly
  • Pump – John Blue piston mounted on stand with drive wheel; various pump options available
  • Trailer frame constructed of channel iron
  • Hitch – swivel
  • Tires – 11.25 x 28
  • Spindles rated at 12,000 pounds with 10 bolt hubs
  • Wheel spacing reversible 72 to 60 inch

Boom Features:

  • Boom widths 4 to 18 rows
  • Tripod construction
  • Manual or hydraulic fold
  • Hydraulic tilt and lift
  • Spring loaded shocks
  • Adjustable nozzle spacing
  • Electric control
  • Breakaway hinge
  • Chemical resistant hose
  • Nozzles
  • Field and golf courses as well as herbicides and pesticides.


  • Agitation
  • Spray gun
  • Dual pump systems
  • Triple nozzle
  • Quick fill
  • Chemical injection

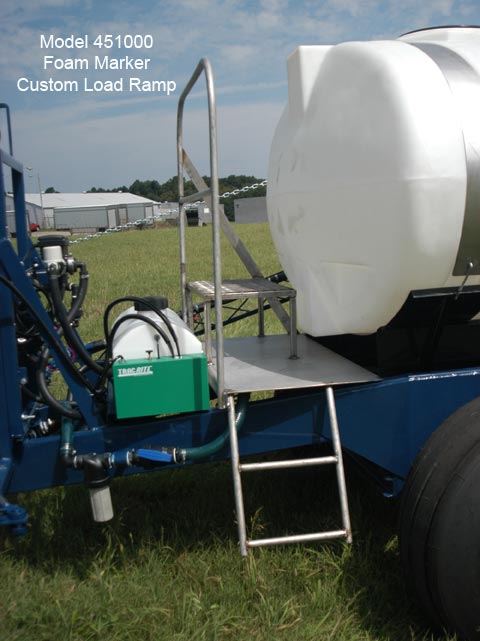

  • Load ramp
  • Guidance using TeeJet or Raven lightbar
  • Guidance with a foam marker
  • Variable Rate
  • Powder coat paint
  • Stainless bands
  • 5 gallon water tank
