Model 48 Tandem Axle Fertilizer Spreaders

Newton Crouch NC Series spreaders are widely used in many applications from turf to farms to athletic fields. Our superior design with fewer moving parts makes our fertilizer spreaders have low maintenance and simple setup.

NCI spreaders have a wide variety of options. Customize your spreader to your requirements – not a one size fits all – by speaking with our knowledgeable representatives who can advise you on components to get the best equipment for your use. Call 800-241-1350 toll free

NC 5000 Features:

  • Capacity of 163 cubic feet – 5 tons
  • Designed for fertilizer spreading
  • 50 foot spread pattern
  • 304 stainless steel hull, dishes, blades and conveyor
  • Trailer is powder coat paint, blue
  • Trailer frame of 2 x 6 inch tube, reinforced at front
  • Conveyor chain width of 7 inches
  • Dual 19 inch dishes with 6 blades
  • Universal joint on spinner drive shaft
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Hubs – 6 bolt
  • Tongue jack – 7,000 pound drop leg
  • Tires are 11L x 15 – 8 ply
  • Rope pull – Braided Nylon
  • 540 PTO drive with twin spinners
  • Springs – 6 leaf and double eye
  • Tarp, fitted with stainless tarp bow
  • Inverted Vee – stainless

NC6000 Features:

  • Capacity of 204 cubic feet – 6 tons
  • Designed for fertilizer spreading
  • 50 foot spread pattern
  • 304 stainless steel hull, dishes, blades, and conveyor
  • Trailer has powder coat paint, blue
  • Trailer frame of 2 x 6 inch tube, reinforced
  • Conveyor chain width of 7 inches
  • Dual 19 inch dishes with 6 blades
  • Universal joint on spinner drive shaft
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Hubs – 8 bolt
  • Tongue jack – 7,000 pound drop leg
  • Tires are 16.5L x 16.1 – 10 Ply
  • Rope pull – Braided Nylon
  • 540 PTO drive with twin spinners
  • Springs – 5 leaf, slipper spring
  • Tarp, fitted with stainless tarp bow
  • Inverted vee – stainless

NC 8000:

  • Capacity of 255 cubic feet –8 tons
  • 50 foot spread pattern
  • 304 stainless steel hull, dishes, blades and conveyor
  • Trailer has powder coat paint, blue
  • Trailer frame of 2 x 6 inch tube, reinforced
  • Conveyor chain width of 7 inches
  • Dual 19 inch dishes with 6 blades
  • Universal joint on spinner drive shaft
  • Ground driven conveyor (with fewer parts on jack shaft)
  • Tires are 19L x 16.1 – 12 Ply
  • Hubs, 8 bolt
  • Tongue jack – 7000 pound drop leg
  • Rope pull – Braided Nylon
  • 540 PTO drive with twin spinners
  • Springs – 5 leaf, slipper spring
  • Tarp, fitted with stainless tarp bow
  • Inverted vee – stainless
  • Brakes, hydraulic surge – 2 wheel
  • Designed for fertilizer spreading only

Enhancements:

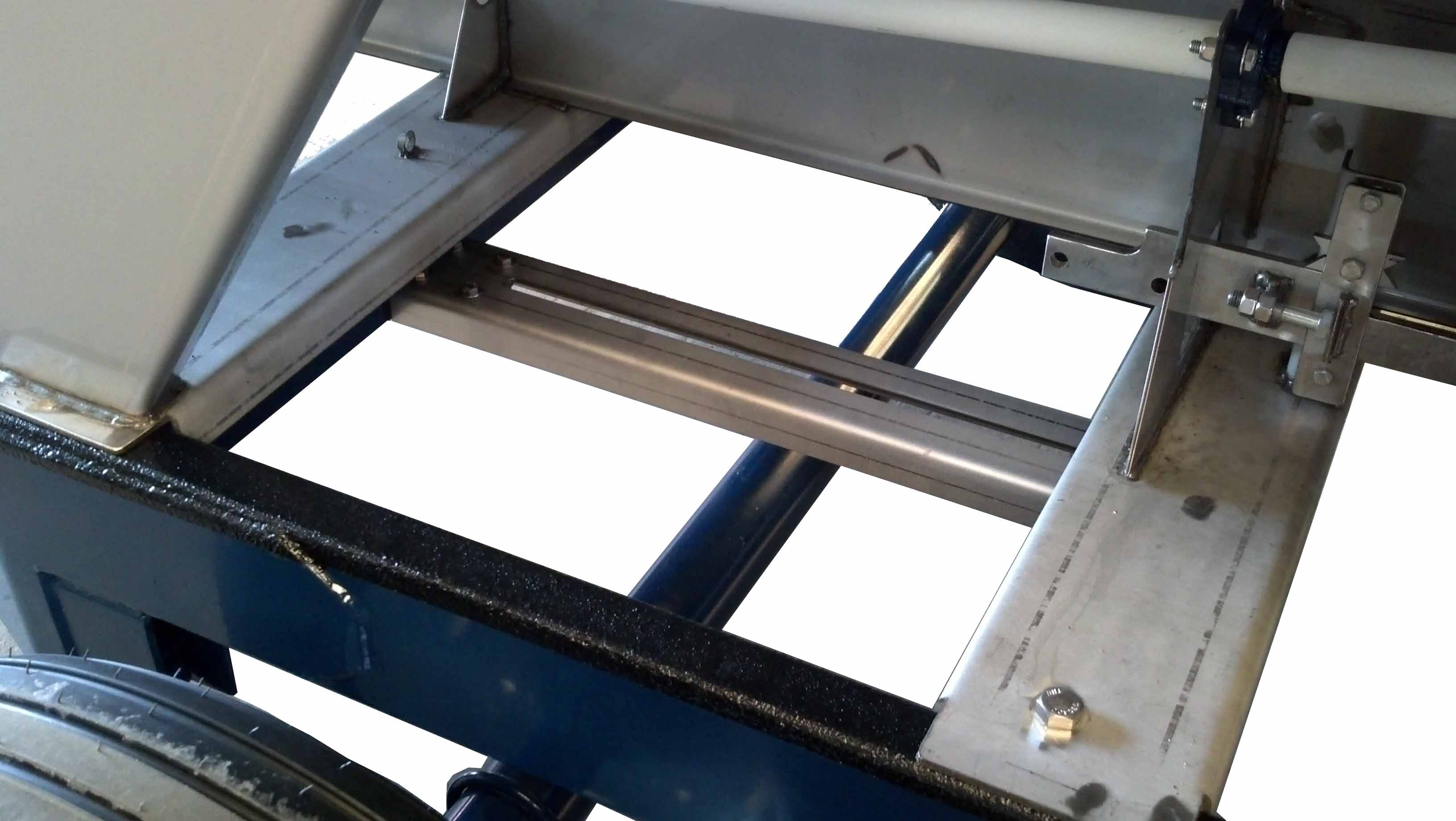

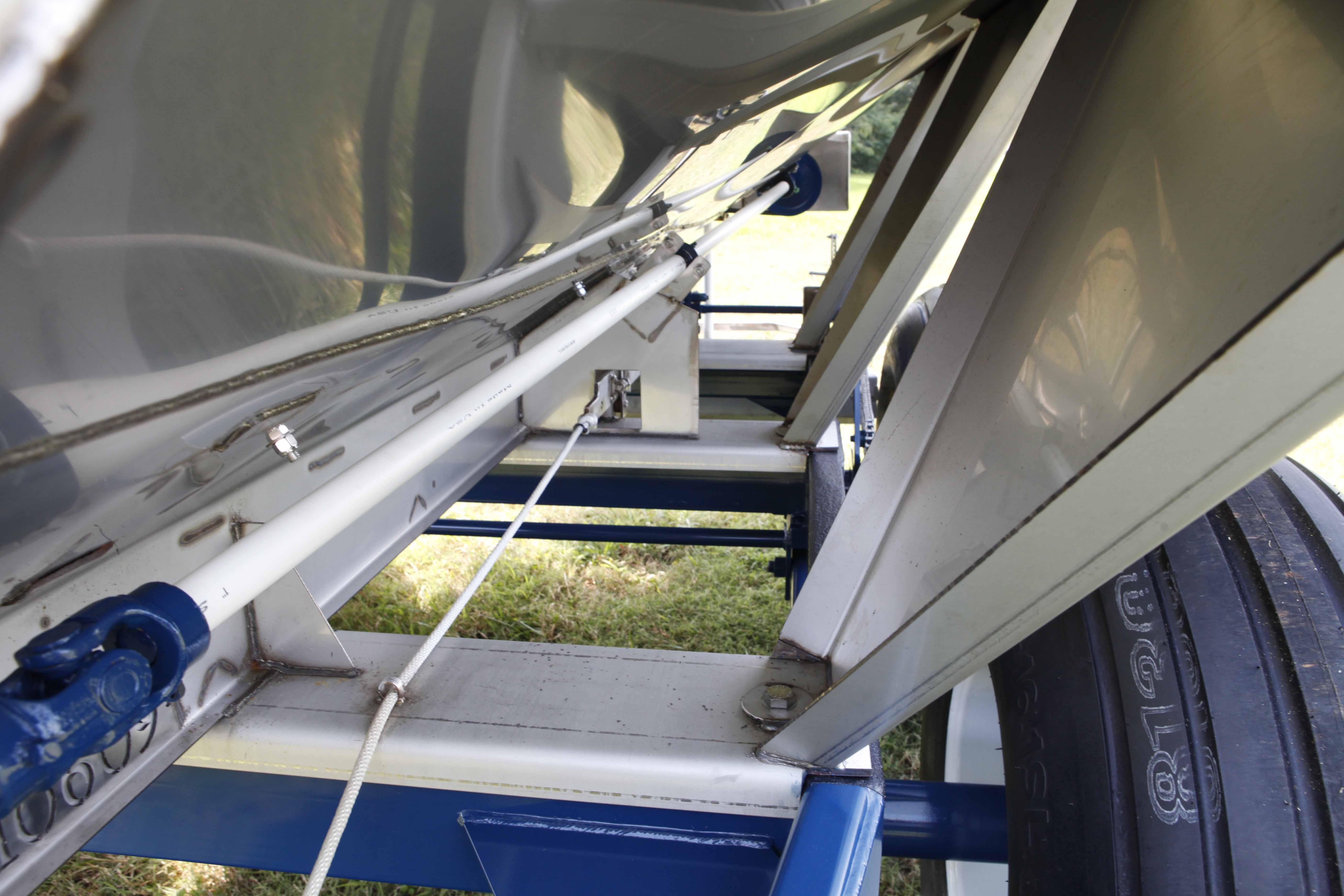

  • Bolt on hull – allows easier cleanup of all corrosive material and maintenance
  • Narrow track – standard wheel centers are 80″; narrow track wheel centers are 60″ NO CHARGE OPTION!
  • Truss bow for tarp
  • Ask your sales rep for other features
