Poultry Litter Treatment Pull Type Spreader
Model 47PLT Pull Type Specifications:
  • Hull – 10’ x 90” with 2” high side, 304 stainless, bolt-on
  • All stainless hull, gate, dishes, blades, gate jack, roller chain
  • Conveyor – 24 inch stainless, outside reinforced straight pin
  • Heavy Duty 30 inch dishes (3/16”), 6 blades (¼”)
  • Self-contained hydraulics with 20 gallon hydraulic tank mounted on front panel
  • Honda GX 690 CC, 22.1 hp gas engine for hydraulic spinners
  • Brand flow control valves for spinner speed adjustments
  • Spinner motors mounted on top
  • Hydraulic cylinder to engage/disengage drive wheel on bed chain
  • Ground drive bed chain
  • Tie downs – bolted to trailer, allows for easy maintenance
  • 2” rear roller bearing with UHMW to prevent leakage
  • Front and rear roller shields
  • Frame – 6 inch tubing
  • Trailer – powder coat paint, blue
  • Tandem 10,000 torsion axles
  • Brakes – tandem axle surge electric over hydraulic
  • Jack – 12,000 pound drop leg
  • Spindles – 8,000 pound, stress proof (4)
  • Hubs – 8 Bolt, 8,000 pound rating
  • Hitch – heavy duty pintle / GI hitch rated 42,000 lbs
  • Safety chains with hooks, 2
  • Herculiner coating completely covering frame
  • Side to side low profile tarp with stainless steel end caps
  • LED stop turn and tail lights with 7 wire plug
  • Scales – 4 point load cell system w/ junction box & 640 monitor
Enhancements
  • Stainless steel fenders with mud flaps
  • Tire wash system – 5 gallon cone tank, ball valve, Shurflo pump, diaphragm QC nozzle bodies, 1 nozzle per tire
  • Backup light bar – 14” bar , On/Off switch in control box mounted in between spinner motors
  • Backup camera system 7” screen
  • Nitto ridge grappler 12 ply rated for 3,970 lbs each

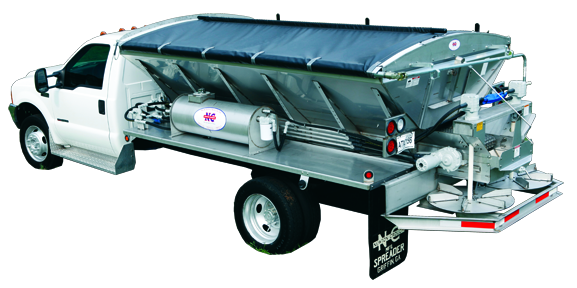

Model 54 Poultry Litter Treatment Chassis Spreader
  • Hull – lengths 9 to 14 feet; 304 stainless, bolt-on
  • All stainless hull, gate, dishes, blades, chassis tube, gate jack
  • Stainless chute screw with stainless bearing and chute coupler
  • Conveyor – 24 inch stainless clinched chain
  • Low profile compact design
  • Full catwalks/fenders – 93 inch wide against ribs
  • Heavy duty 30 inch dishes (1/4″), 6 Blades (1/4”)
  • All hydraulic transmission control
  • Motors mounted on top
  • Spinners – twin in series; 1.25” shaft
  • Oil tank – 40 gallon with sight gauge, stainless
  • Filters – suction (internal) and large capacity return
  • Lights – stop, tail , turn – above catwalk, LED
  • Heat shrink on hydraulic fittings, rear only
  • Baffle – 1/4” stainless and baffle shield
  • UHMW around rear roller
  • Inverted vee, stainless
Enhancements:
  • Rheostats dual control for conveyor and spinners
  • Tarp with low profile ends, stainless
  • Special options on hull length
  • Conveyor – outside reinforced chain
  • Scales with brackets and belly pan
  • Digital scale printer & camera mounted in cab
  • Screw conveyor delivery
  • Lights – LED rear
  • Camera
  • Bearings – stainless
  • Ladder – stainless
  • Poly edge flighting
