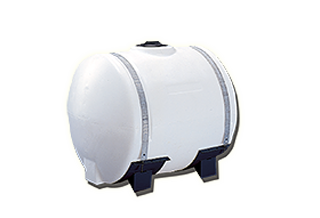

Applicator Tank
All Norwesco applicator tanks feature a lid which threads directly into the fill-opening of the tank to prevent the sloshing or leaking of tank contents during transport or application. Applicator tanks are often skid tank, saddle tank, or cradle tank.
Applicator Tank
| Gallon Capacity | Diameter | Overall Height | Length | Fill Opening | Outlet/Drain Specification | Premium Weight Part No. White | Avail |
|---|---|---|---|---|---|---|---|
| 20¤† | 15″ | 18″ | 31″ | 5″-(63484) | 3/4″-(60401) | 61737 | F,I,L |
| 30¤ | 23″ | 26″ | 21″ | 5″-(63484) | 3/4″-(60401) | 41799 | A |
| 55 | 23″ | 27″ | 34″ | 5″-(63484) | 3/4″-(60401) | 45193 | A |
| 70 | 23″ | 26″ | 44″ | 5″-(63484) | 3/4″-(60401) | 44237 | C,I |
| 85 | 23″ | 26″ | 52″ | 5″-(63484) | 3/4″-(60401) | 45105 | D,I |
| 100† | 24″ | 28″ | 57″ | 8″-(63480) | 3/4″-(60401) | 60204 | A |
| 110 | 30″ | 34″ | 41″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 45053 | A |
| 150 | 30″ | 33″ | 58″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 40648 | D |
| 150 | 32″ | 35″ | 46″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 45117 | A |
| 200 | 32″ | 35″ | 62″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 45059 | A |
| 200 | 38″ | 42″ | 47″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 45061 | A |
| 300 | 38″ | 41″ | 68″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 40135 | A |
| 400 | 42″ | 45″ | 74″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 40137 | B,C,F |
| 500 | 48″ | 51″ | 75″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 40274 | A |
| 200 Slim Line † | 24″ | 48″ | 61″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 41305 | I |
| 200 Slim Line † | 31″ | 46″ | 48″ | 8″-(63480) | 1-1/4″-(60403) 1-1/4″ (63065) | 40780 | D |

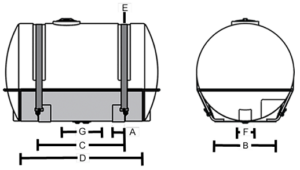

Applicator Tank Saddle Assemblies
| Tank Size | Tank Part No. | A | B | C | D | E | F | G | Part No. |
|---|---|---|---|---|---|---|---|---|---|
| 30¤ | 41799 | 3″ | 19″ | 13-1/2″ | 13-1/2″ | 2″ x 54″ | 8″ | 7-3/4″ | 60321 |
| 55¤ | 45193 | 6″ | 18-1/8″ | 24″ | 24″ | 2″ x 48″ | — | 12″ | 60303 |
| 70¤ | 44237 | 6″ | 18-1/8″ | 24″ | 24″ | 2″ x 48″ | — | 12″ | 60303 |
| 85¤ | 45105 | 6″ | 18-1/8″ | 24″ | 24″ | 2″ x 48″ | — | 12″ | 60303 |
| 110¤ | 45053 | 12″ | 23-3/4″ | 28-3/4″ | 34-3/4″ | 2″ x 72″ | — | 10-3/4″ | 60315 |
| 150-30″¤ | 40648 | 12″ | 23-3/4″ | 28-3/4″ | 34-3/4″ | 2″ x 72″ | — | 10-3/4″ | 60315 |
| 150-32″¤ | 45117 | 12″ | 23-3/4″ | 28-3/4″ | 34-3/4″ | 2″ x 72″ | — | 10-3/4″ | 60315 |
| 200-32″ | 45059 | 6″ | 24-7/8″ | 36″ | 60″ | 2″ x 96″ | 8″ | 13-1/4″ | 63019 |
| 200-38″ | 45061 | 6″ | 24-3/4″ | 34″ | 42″ | 2″ x 96″ | — | 13-1/4″ | 63020 |
| 300 | 40135 | 6″ | 24-3/4″ | 34″ | 60″ | 3″ x 96″ | 8″ | 12″ | 63021 |
| 400 | 40137 | 6″ | 30-1/8″ | 42-1/2″ | 60″ | 3″ x 96″ | 8″ | 12″ | 63022 |
| 500 | 40274 | 6″ | 30-1/8″ | 42-1/2″ | 60″ | 3″ x 132″ | 8″ | 12″ | 63023 |
For specification drawings, visit Norwesco’s Flat Bottom Tank page.
Norweco’s plastic storage tank is constructed with rotationally molded polyethylene resin. It’s seamless construction makes it durable and resistant to cracks, chips, and ruptures. The poly tank was made with FDA approved resin that complies with FDA standards 21 CFR 177.1520 (1) 3.1 and 3.2 for use in food grade storage. It’s made with UV inhibitors that help protect liquid contents from direct sunlight for both indoor and outdoor use. Please verify chemical compatibility before placing your order.
Norwesco backs their polyethylene storage tank with a 3-year manufacturer warranty. Additional fittings and customization options are available.
