Elliptical Tank

Designed for larger volume applicator needs, the Norwesco elliptical tanks feature a low profile design and a low center of gravity for excellent visibility in the field and increased stability when towed. A deep sump permits complete drainage and the tanks feature an 8″ or 16″ fill-opening.

Elliptical Tank

Gallon Capacity	Width	Overall Height Including Sump	Length	Sump Depth	Fill Opening	Outlet/Drain Specification	Premium Weight Part No. White	Avail
200	40″	30″	66″	3/4″	8″-(63480)	1-1/4″-(60403) & 1-1/4″-(63065)	41252	C,D,F,I,L,T
300	48″	36″	70″	3″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	40327	B,C,D,F,I,L,T
300**	48″	33″	70″	1 3/4″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	45738	I,X
300***	48″	33″	70″	1 3/4″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	45746	I,X
500	57″	44″	82″	2″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	40328	B,C,D,F,L,T
500**	57″	39″	82″	1 3/4″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	45742	I,X
500***	57″	39″	82″	1 3/4″	16″-(63485)	1-1/4″-(60403) & 1-1/4″-(63065)	45750	I,X
750	69″	48″	88″	3″	16″-(63485)	2″-(60405)	40329	B,C
1000	78″	55″	90″	3″	16″-(63485)	2″-(60405)	40330	B,C
1600*	78″	54″	138″	2 1/2″	16″-(63485)	2″-(60405)	47972	B,C
Baffle for 1600 elliptical tank							45410
Includes poly baffle. Offset manway **Offset octagonal manway

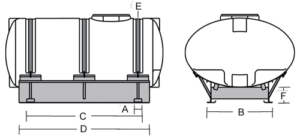

Elliptical Skid

Tank Size (Gallon)	Tank Part No.	A	B	C	D	E	F	Part No.
200	41252	4″	24″	52″	57″	2″ x 68″	8″	63015
300	40327	4″	34″	46-1/4″	54-1/4″	2″ x 76″	8″	63016
500	40328	4″	34″	60″	68″	2″ x 94″	8″	63018
750	40329	4″	38″	69-1/2″	78″	2″ x 112″	8″	60371
1000	40330	4″	46″	60″	72″	2″ x 130″	8″	60372

Liquid Storage Tanks Catalog

Norweco’s plastic storage tank is constructed with rotationally molded polyethylene resin. It’s seamless construction makes it durable and resistant to cracks, chips, and ruptures. The poly tank was made with FDA approved resin that complies with FDA standards 21 CFR 177.1520 (1) 3.1 and 3.2 for use in food grade storage. It’s made with UV inhibitors that help protect liquid contents from direct sunlight for both indoor and outdoor use. Please verify chemical compatibility before placing your order.

Norwesco backs their polyethylene storage tank with a 3-year manufacturer warranty. Additional fittings and customization options are available.
