Horizontal Storage Tanks are used primarily for transport and nursing applications, Norwesco’s leg tanks feature molded legs that act as “baffles” to reduce sloshing. With the broadest leg tank line available, Norwesco manufactures a size that will fit your needs. Other tank capacities available . Please inquire.

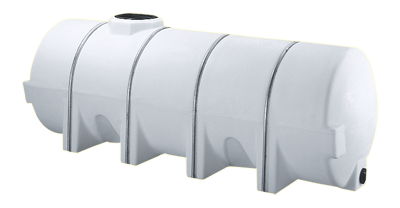

Horizontal Leg Tank

Tank Band Dimensions

Horizontal Leg Tanks
Premium Weight, White Part No. Heavy Weight, Blue Part No. Gallon Capacity Specs Diameter(in) Overall Height (in) Tank Length(in) Fill Opening (in) Outlet/Drain (in)
45223 – 35  L 20 23 29 5 0.75
45191 – 65  L 23 26 43 5 0.75
40298 – 125  B 32 35 41 8 2
40299 – 225*  B 38 41 49 8 2
40217 – 325   38 38 68 16 2
40181 40193 525  A 49 54 71 16 2
40180 40194 725**  A 49 54 101 16 2
40089 40131 1025**  A 49 54 139 16 2
40026 40133 1625**  A 63 68 139 16 2


* Poly Stand for 225 Gallon Tank – Part No 42854
** Require full length support and bands



Bands for Horizontal Leg Tanks
Gallon Capacity Band Part No.  Band Qty A  (in)  B  (in)  C  (in)
35   60520   2 opt   18.50   18.50   21.375
65   61745   2 opt   22.00   22.00   26.5
125   61744   2 opt   30.75   30.50   35
225*   60478   2 opt   36.50   36.00   42
325   60478   2 opt   36.50   36.00   42
525   60057   2 opt   47.75   46.25   52.25
725**   60057   3 req   47.75   46.25   52.25
1025**   60057   4 req   47.75   46.25   52.25
1625**   60079   4 req   60   61.75   67.25
