High Density Polyethylene Lids |
||||
| Item | Description | Vent Capacity (GPM) |
Part Number | |
|---|---|---|---|---|
| – | 22″ Lid and ring with air vent | 400 | 63679 | |
| – | 22″ Lid, ventless with ring * | 63863 | ||
| – | 16″ Lid and ring with 4″ center lid/air vent | 100 | 60038 | |
| A | 16″ Lid with 4″ center lid/air vent | 100 | 60011 | |
| B | 16″ Lid and ring with blue snap-in vent | 200 | 63485 | |
| – | 16″ Lid and ring with 3″ center thread | 63868 | ||
| – | 16″ Ring only | 60012 | ||
| – | 16″ Lid, ventless with ring | 60367 | ||
| C | 16″ Lid, ventless | 60365 | ||
| – | 4″ Lid (air vent assembly for 16″ lid) | 60019 | ||
| – | Blue snap-in vent for 16″ lid (63485) | 63539 | ||
| – | 8″ Lid, ring & air vent | 60032 | ||
| D | 8″ Lid with air vent (For select tanks manufactured prior to 2/2/08) |
60002 | ||
| – | 8″ Ring only (for 60002 lid) | 60003 | ||
| – | Snap on air vent for 8″ lid (60002) | 61727 | ||
| E | 8″ Lid with blue snap-in vent (For select tanks manufactured after 2/2/08) |
200 | 63480 | |
| – | Blue snap-in vent for 8″ lid (63480) | 63482 | ||
| F | 5″ Lid with ball check air vent (for tanks manufactured prior to 2/1/00) | 60322 | ||
| G | 5” Lid with ball check air vent, with gasket | 63484 | ||
| – | 5″ lid with 2″ FPT (does not include vent cap) | 63264 | ||
| – | 5″ Lid, hinged, (for 52 & 68 gallon flat bottom & 110 low profile) | 63673 | ||
| – | EPDM gasket for 5″ lids 60322, 63264 or 63484 | 60366 | ||
| – | 18″ lanyard for 8″ lid and 16″ non-hinged lid (tethers lid to tank) | 62531 | ||
| – | Ethafoam gasket for 16″ non-hinged lid | 62941 | ||
| – | Stainless steel screw for 8″ and 16″ rings | 60081 | ||
| – | Strainer basket for 16″ fill-opening (7″ depth) | 67374 | ||
| * There is no connection point on this lid for a lanyard. | ||||
Hinged Lids
The hinged lid is manufactured from a co-polymer material for strength, durability and excellent chemical resistance. Our unique locking tab allows you to easily slip a padlock through it and secure your lid from theft or spills. The lid is interchangeable with a standard 16″ lid and ring assembly if you choose to replace your existing lid.
Specific features of the lid:
- Easy open/close – opens a full 180 degrees
- Comes complete with a baffle vent assembly which allows for adequate venting when bottom filling your tank
- Unique locking tab
- All parts of lid may be ordered as repair parts
Hinged Lids |
||||||||
| Description | Vent Capacity (GPM) | Part Number | ||||||
| 22″ Hinged lid with ring & vent | 250 | 63874 | ||||||
| 16″ Hinged lid with ring & vent | 100 | 62532 | ||||||
| 16″ Hinged lid with vent assembly, without ring | 100 | 62826 | ||||||
| 16″ Hinged ventless lid, with ring | 63390 | |||||||
16″ Hinged Lid Repair Parts |
||||||||
| Description | Part Number | |||||||
| Vent assembly | 62827 | |||||||
| Ring Assembly | 62828 | |||||||
| Hinge Assembly | 62829 | |||||||
| EPDM O-ring gasket for lid | 62830 | |||||||
| Neoprene O-ring for ring | 62831 | |||||||
Part dimensions may vary and are subject to change without notice.
Polypropylene Bulkhead Fittings-EPDM or Viton Gaskets
Norwesco’s polypropylene fittings come standard with an EPDM gasket. Viton gaskets are available as an option when EPDM may not be suitable for your application. The 2″ stainless steel bulkhead fitting comes standard without a gasket.
Polyproylene Fittings with Gaskets |
||||||||
| Description | Hole Size Req in Tank for Installation | Item Code | Part Number | |||||
| 1/2″ Hvy Duty dbl threaded pp fitting | 1 7/16″ | A | 62834 | |||||
| 3/4″ Dbl threaded pp fitting | 1 7/16″ | A | 60401 | |||||
| EPDM gasket for #62834, #60401 | – | – | 60402 | |||||
| Type A Viton gasket for #62834, #60401 | – | – | 60360 | |||||
| 3/4″ Hvy Duty Dbl threaded pp fitting | 1 5/8″ | A | 62798 | |||||
| EPDM gasket for #662798 | – | – | 62799 | |||||
| Type A Viton gasket for #62798 | – | – | 62800 | |||||
| 1″ Dbl threaded pp fitting | 2 1/4″ | A | 60427 | |||||
| 1 1/4″ Dbl threaded pp fitting | 2 1/4″ | A | 60403 | |||||
| 1 1/4″ Anti-vortex pp fitting | 2 1/4″ | D | 63065 | |||||
| EPDM gasket for #60427,#60403, #63065 | – | – | 60404 | |||||
| Type A Viton gasket for #60427,#60403, #63065 | – | – | 60361 | |||||
| Anti-vortex adapter for #60403 | – | – | 62398 | |||||
| 1 1/2″ Std duty Dbl threaded pp fitting | 2 3/8″ | A | 63931 | |||||
| EPDM gasket for #63931 | – | – | 63938 | |||||
| Type A Viton gasket for #63931 | – | – | 63939 | |||||
| 1 1/2″ Dbl threaded pp fitting | 3″ | A | 60124 | |||||
| Siphon Tube 1 1/2″ X 4 15/16″ long | – | – | 63682 | |||||
| Siphon Tube 1 1/2″ X 12″ long | – | – | 63279 | |||||
| 2″ Dbl threaded pp fitting | 3″ | A | 60405 | |||||
| 2″ Dbl threaded 316 SS fitting, less gasket | 3″ | – | 61767 | |||||
| EPDM gasket for #60124, #60405, #63481, #61767 | – | – | 60406 | |||||
| Type A Viton gasket for #60124, #60405, #63481, #61767 | – | – | 60523 | |||||
| 2″ Std duty Dbl threaded pp fitting * | 3″ | E | 63481 | |||||
| 2″ Hvy duty Dbl threaded pp fitting * | 3 1/4″ | B | 63683 | |||||
| EPDM gasket for #63683 | – | – | 60336 | |||||
| Type A Viton gasket for #63683 | – | – | 60008 | |||||
| Siphon Tube 2″ short | – | – | 60335 | |||||
| Siphon Tube 2″ X 12″ long | – | – | 63262 | |||||
| Anti-vortex adapter for 2″ bulkhead fitting | – | – | 62399 | |||||
| 2″ PP dust plug | – | – | 60021 | |||||
| 2″ Self-align Dbl thread pp fitting ** | – | – | 60021 | |||||
| EPDM gasket for #63668 | – | – | 60331 | |||||
| Type A Viton gasket for #63668 | – | – | 60351 | |||||
| 3″ Dbl thread pp fitting *** | 4 1/2″ | C | 62299 | |||||
| EPDM gasket for #62299 | – | – | 60331 | |||||
| Type A Viton gasket for #62299 | – | – | 60351 | |||||
| 2″ PP reducer for 3″ | – | – | 60330 | |||||
| Siphon Tube 3″ short | – | – | 60327 | |||||
| Siphon Tube 3″ X 12″ long | – | – | 63263 | |||||
| Siphon Tube 3″ X 19 1/2″ long | – | – | 64102 | |||||
| 4″ Dbl threaded PP fitting *** | 5 3/4″ | – | 62171 | |||||
| EPDM gasket for #62171 | – | – | 62785 | |||||
| Type A Viton gasket for #62171 | – | – | 62786 | |||||
| Siphon Tube for 4″ | – | – | 62714 | |||||
* Maximum tank wall thickness = 3/8″
** Designed to install in dome of vertical tank above liquid level
*** Hex nut as shown in photo C
Part dimensions may vary and are subject to change without notice.

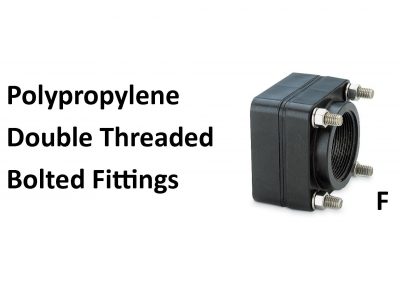

Polypropylene Double Threaded Bolted Fittings
Norwesco’s polypropylene double threaded bolted fittings come standard with an EPDM gasket. Viton gaskets are available as an option when EPDM may not be suitable for your application. These fittings require 2 gaskets each.
Polypropylene Double Threaded Bolted Fittings |
||||||||
| Description | Item Code | Part Number | ||||||
| 3/4″ PP bolted fitting with SS bolts & EPDM gaskets | F | 60502 | ||||||
| 1″ PP bolted fitting with SS bolts & EPDM gaskets | F | 60505 | ||||||
| EPDM gasket for 60502 & 60505 fittings | – | 60498 | ||||||
| Type A Viton gasket for 60502 & 60505 fittings | – | 60355 | ||||||
| 1 1/2″ PP bolted fitting with SS bolts & EPDM gaskets | F | 60513 | ||||||
| 2″ PP bolted fitting with SS bolts & EPDM gaskets | F | 60516 | ||||||
| EPDM gasket for 60513 & 60516 fittings | – | 60497 | ||||||
| Type A Viton gasket for 60513 & 60516 fittings | – | 60356 | ||||||
| 3″ PP bolted fitting with SS bolts & EPDM gaskets | F | 62471 | ||||||
| EPDM gasket for 62471 fitting | – | 62048 | ||||||
| Type A Viton gasket for 62471 fitting | – | 60602 | ||||||
Part dimensions may vary and are subject to change without notice.
Stainless Steel Double Threaded Bolted Fittings
Norwesco’s stainless steel double threaded bolted fittings are threaded into back plate – no welds or bolt holes that can be potential points of leakage. Fittings come standard without a gasket and require a single gasket installed on the inside of the tank. Available gaskets are cross-linked polyethylene, EPDM or Viton.
Stainless Steel Double Threaded Bolted Fittings |
||||||||
| Description | Item Code | Part Number | ||||||
| 1/2″ 316 SS dbl threaded bolted fitting less gasket | G | 63216 | ||||||
| 3/4″ 316 SS dbl threaded bolted fitting less gasket | G | 63035 | ||||||
| 1″ 316 SS dbl threaded bolted fitting less gasket | G | 62948 | ||||||
| EPDM gasket for 63216,63035,62948 fittings | – | 63205 | ||||||
| Type A Viton gasket for 63216,63035,62948 fittings | – | 63224 | ||||||
| Cross-linked polyethylene gasket for 63216,63035,62948 fittings | – | 62950 | ||||||
| 1 1/4″ 316 SS dbl threaded bolted fitting less gasket | G | 63036 | ||||||
| Cross-linked polyethylene gasket for 63036 fitting | – | 63041 | ||||||
| 1 1/2″ 316 SS dbl threaded bolted fitting less gasket | G | 63037 | ||||||
| EPDM gasket for 63036,63037 fittings | – | 63426 | ||||||
| Cross-linked polyethylene gasket for 63037 fitting | – | 63042 | ||||||
| 2″ 316 SS dbl threaded bolted fitting less gasket | G | 63038 | ||||||
| EPDM gasket for 63038 fitting | – | 63206 | ||||||
| Type A Viton gasket for 63038 fitting | – | 63225 | ||||||
| Cross-linked polyethylene gasket for 63038 fitting | – | 62848 | ||||||
| 3″ 316 SS dbl threaded bolted fitting less gasket | H | 63039 | ||||||
| EPDM gasket for 63039 fitting | – | 63223 | ||||||
| Type A Viton gasket for 63039 fitting | – | 63226 | ||||||
| Cross-linked polyethylene gasket for 63039 fitting | – | 63043 | ||||||
| 4″ 316 SS dbl threaded bolted fitting less gasket | H | 63688 | ||||||
| EPDM gasket for 63688 fitting | – | 63690 | ||||||
| Type A Viton gasket for 63688 fitting | – | 63691 | ||||||
| Cross-linked polyethylene gasket for 63688 fitting | – | 63689 | ||||||
Part dimensions may vary and are subject to change without notice.
